DC to AC Power Supplies (Inverters)
Portable, Rugged DC/AC Inverter features sine wave output.
Press Release Summary:
Conformal coated and ruggedized for immunity to shock, vibration, humidity, moisture, and airborne contaminants, CSI 2KT-2A uses microprocessor-controlled, high-frequency PWM technology to generate 2 KVA output power with pure sine wave output voltage. Inverter measures 246 x 512 x 605 mm, delivers 110 Vac/18 Arms continuous at 60 Hz, and operates from 24 Vdc line voltage. Options include 230 Vac/8.7 Arms and custom outputs as well as 48/125 Vdc or custom inputs.
Original Press Release:
2kVA, Rugged, Portable DC/AC Inverter with Sine Wave Output for Field Applications

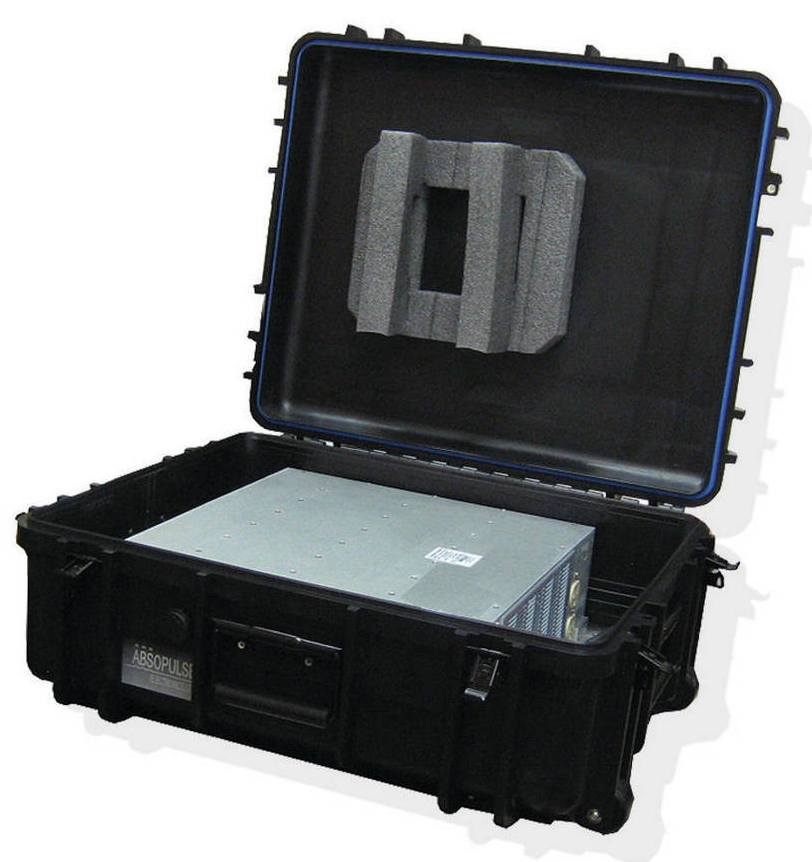

Absopulse Electronics' CSI 2KT-2A is a rugged, portable DC/AC inverter system that uses field proven microprocessor controlled high frequency PWM technology to generate 2KVA output power with pure sine wave output voltage. High frequency conversion enables compact construction, low weight and high efficiency. The system is conformal coated and heavily ruggedized for immunity to high levels of shock, vibration, humidity, moisture and airborne contaminants. In addition, it is housed in a splash-proof 246 x 512 x 605mm case, with a sturdy handle for portability and for easy use in the field.
The CSI 2KT-2A system delivers 110Vac/18Arms continuous at 60Hz; 230Vac/8.7Arms and custom outputs are also available. This inverter operates from a 24Vdc line voltage; 48Vdc, 125Vdc or custom inputs are also possible. It is built with internal power modules: the DC/DC input stage boosts the input voltage to a higher DC voltage, which feeds the DC/AC inverter to generate the required AC output. The system has full electronic protection. The input and output are filtered for low noise: the system meets EN 55022 Class A with margins.
The CSI 2KT-2A is priced in the CA$2,580 range at low quantities, depending on options required.
ABSOPULSE ELECTRONICS LTD.
www.absopulse.com
Ottawa. Canada
Tel.: +1-613-836-3511; Fax: +1-613-836-7488
e-Mail: absopulse@absopulse.com
Company Profile
Established in 1982, Absopulse Electronics specializes in the design and manufacture of high-reliability, heavy-duty switch-mode power conversion products for the railway, industrial, military, marine, aeronautic, oil and gas, utility and telecommunications sectors.
Product Range
The company's product line includes AC-DC power supplies and battery chargers, DC-DC converters, sine-wave inverters, phase and frequency converters, DC-input dimmable back-light inverters for LCD displays, DC-output UPS systems, laboratory power supplies and complete power systems in 19" and 23" racks.
Design Capabilities
Absopulse provides cost-effective solutions to almost any input, output and mechanical configuration requirement.
