PCB Testing Kit helps debug existing systems.

Press Release Summary:




Designed to provide new or additional test points on printed circuit boards (PCBs), PCB Probe Kit offers functionality for probing and viewing signals on logic analyzer, oscilloscope, meter, or other instrument. Hands-free system includes arm probe with heavy base, spring loaded tip, rotatable head, and fine vertical adjustment knob. Kit also includes lead clips, SMD clips, SMD clip support with guide wire, and integrated magnifying glass with tweezers.



Original Press Release:



OptoTherm Releases PCB Probe Kit



OptoTherm has added a PCB Probe testing kit to its product line. The PCB Probe Kit is specially designed to provide new or additional test points on printed circuit boards (PCB). Engineers attempting to debug an existing system will find this as an indispensable tool for probing and viewing signals on a logic analyzer, oscilloscope, meter, or other instrument. This complete hands-free system allows engineers to focus on the analysis rather than on how to physically probe the system, regardless of the availability of test points on the PCB.

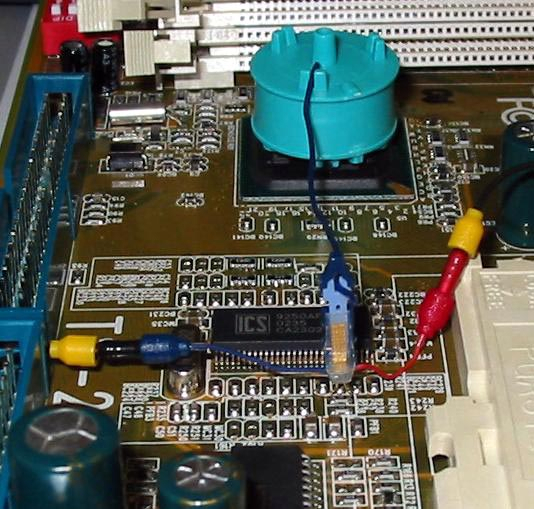

The following components are included in the in the PCB Probe Kit: Arm probe with a heavy base, spring loaded tip, rotatable head and fine vertical adjustment knob to enable precise positioning to adjacent test points; Small lead clips enabling quick connection to SMD leads from 0.5mm down to 0.2mm lead pitch; Large lead clips enabling connection to leads from 1.25mm down to 0.3mm lead pitch; SMD clips available in four sizes: 0201, 0402, 0603, and 0805; SMD Clip Support with Guide Wire; and an integrated Magnifying Glass with Tweezers designed to assist the user when working on small components in tight areas.

Please review our website or contact us directly for more information.

Company Name: OptoTherm
Address 1: 2591 Wexford-Bayne Road
Address 2: Suite 304
City: Sewickley
State: PA
Zip: 15143
Country: USA
Phone: 724-940-7600
URL: www.optotherm.com

Contact Name: Al Stricker
Organization:
Title: Business Manager
E-mail: astricker@optotherm.com
