Oscilloscopes offer high sample rates, 7 in. widescreen display.

Press Release Summary:

Available in 2- and 4-channel models from 70-300 MHz, WaveAce 2000 delivers sample rates to 2 GSPS and 24 kpts of memory. WaveAce 1000, offering sample rates to 1 GSPS, provides 2 Mpts of memory and comes in 2-channel models from 40-100 MHz. Features on all models include debug tools, such as 32 automatic measurements, waveform math capabilities, pass/fail mask testing, remote control, and waveform recorder. Oscilloscopes can integrate with logic analyzer or waveform generator.

Original Press Release:

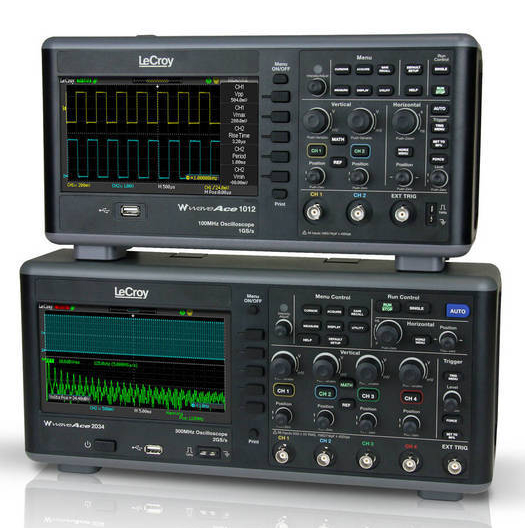

LeCroy Introduces New WaveAce Oscilloscopes with Long Memory, High Sample Rate and Large Display

WaveAce 1000 & 2000 Feature 2 Mpts, 2 GS/s and 7" Widescreen Display

Chestnut Ridge, NY - LeCroy Corporation today announced two new lines of the popular WaveAce oscilloscope series ─ the WaveAce 1000 and WaveAce 2000. WaveAce 1000 oscilloscopes feature a sample rate of up to 1 GS/s with 2 Mpts of memory in two-channel models from 40 MHz to 100 MHz. WaveAce 2000 oscilloscopes deliver sample rates of up to 2 GS/s and 24 kpts of memory and are available in two- and four-channel models from 70 MHz up to 300 MHz. All new WaveAce oscilloscopes feature a large 7" widescreen display, and powerful debug tools such as 32 automatic measurements, waveform math capabilities, pass/fail mask testing, large internal storage, remote control and waveform recorder. Integration with LeCroy's logic analyzer and waveform generators provides expanded debug and testing capabilities. This powerful combination of features makes WaveAce the best oscilloscope for simplifying the debug process.

Measure and Debug Tools
With 32 automatic measurements standard, the WaveAce simplifies how measurements are made. The large 7" widescreen display can show up to five measurements without crowding the waveform display, or show all 32 at once with the measurement dashboard. A wide range of advanced timing parameters provide insight to the relationship between signals on two different channels. WaveAce oscilloscopes provide five math functions for additional analysis including Add, Subtract, Multiply, Divide and FFT. The FFT can be viewed using four different windows and two different vertical scales for a flexible view of the frequency domain. Built-in pass/fail mask testing allows for quick identification of problems and highlights when they have occurred.

Large Internal Storage
Saving and recalling waveforms and setups from internal memory can significantly shorten test and debug time. Many oscilloscopes do not provide enough internal storage space, forcing the user to rely on external USB storage. The WaveAce has internal storage to save up to 20 waveforms, 20 setups and two reference waveforms.

Remote Control
All WaveAce models provide a USB host port on the front panel for saving screen images, waveforms and setups to a memory stick. A rear panel USB device port allows for connection to a PC or printer. Connecting and communicating with a PC is simplified with LeCroy's WaveStudio software that provides full access to the oscilloscope's display, measurement, waveform data and front panel controls.

Beyond the Basic Oscilloscope
The WaveAce 1000 and 2000 go beyond the capabilities of a typical oscilloscope as both are easily integrated with the LogicStudio 16 logic analyzer or the WaveStation function/arbitrary waveform generators. When connected to the same PC, the LogicStudio 16 and the WaveAce turn any PC into a mixed signal oscilloscope. Tools for capturing, viewing and measuring analog, digital and serial bus signals are integrated on one screen. LogicStudio offers 16 channels, 100 MHz and up to 1 GS/s logic analysis with I2C, SPI and UART triggering and decoding. Connecting a WaveAce oscilloscope and a WaveStation to the same PC enables transferring real world signals captured on a WaveAce to the WaveStation to be easily recreated later. Signals saved to the WaveStation can then be edited with the PC editing software using a variety of math, filtering or point by point editing tools.

Easy to Use for Faster Debug
The high performance and large feature set of the WaveAce is controlled by an intuitive user interface with 11 different languages and a streamlined front panel. All important controls and menus are accessed from the front panel with a single button press. All position and offsets can be reset by simply pressing the corresponding knob. Pressing the V/Div knob will switch between fixed and variable gain, and pressing the T/div knob will toggle between zoom modes. Buttons on the front panel that open and close menus or switch modes, are backlit so that the mode of operation is easily visible to the user.

Engineers and technicians who would like to know more can contact LeCroy at 1-800-5LeCroy (1-800-553-2769) or visit www.lecroy.com

The WaveAce 1000 is available in 3 different models with US list prices ranging from $790 to $1,190. The WaveAce 2000 is available in 8 different models with US list prices ranging from $1,150 to $2,975.
