DC to DC Power Supplies (Converters)
Open Frame Power Supply has power density of 5.3 W/cubic in.
Press Release Summary:
Measuring 2 x 4 in., 1U compliant convection-cooled MPD-F06B DC-DC open frame power supply provides outputs of +5, +12, and -12 V from input range of 10-36 Vdc. It is rated at +50°C with linear derating to 50% capacity at +70°C. CE-marked unit has Class II construction with double isolation and requires no GND protection. It's output terminal appliance has Molex type pitch power connector and features over voltage, overload, and short circuit protection.
Original Press Release:

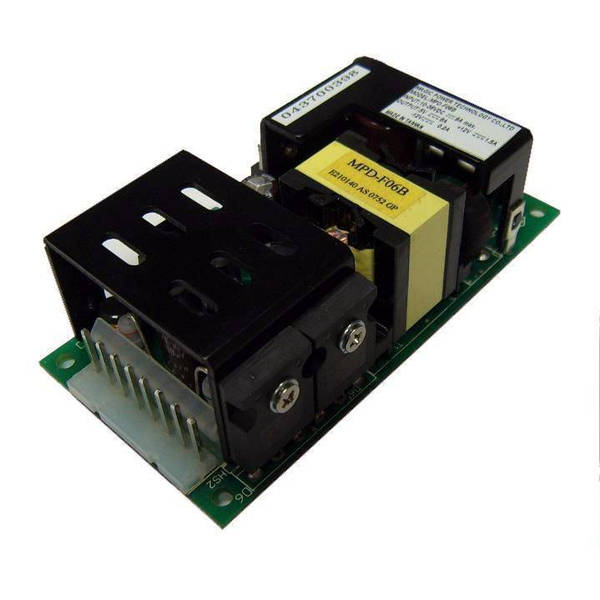

Isolated 2''x 4'' 60-Watt Triple-Output Chassis Mount DC-DC Converter (P/N MPD-F06B)
Sunnyvale, California - November 11, 2008 - Magic Power Technology Inc. introduces the MPD-F06B, an ultra compact 2'' x 4'' 60W DC-DC open frame power supply. This convection-cooled device is compliant with standard 1U applications. MPD-F06B has three outputs (+5V, +12V, -12V) and a wide DC input range from 10V to 36V DC. The small size of MPD-F06B allows for greater flexibility in overall system design, as it does not need to be located adjacent to a system fan and has no need for a dedicated cooling fan. This allows for low noise and a higher MTBF. MPD-F06B is rated at +50C with linear derating to 50% capacity at +70C.
The reduced PCB board size increases the device power density, which is calculated to be 5.3 Watts per cubic inch. Due to the device's greater efficiency, ambient temperature performance, reliability, and energy savings are maximized. In addition, no minimum load is required for the unit to start up and maintain stated specifications. MPD-F06B has Class II construction with double isolation and requires no GND protection. Its output terminal appliance has Molex type pitch power connector, and comes with standard protection mechanisms in cases of over voltage, overload, or short circuit.
MPD-F06B is CE-marked and is designed to meet the following standards: UL 60950-1 and IEC 60950-1. MPD-F06B is an ideal candidate for use in IT and industrial applications. A 2-year warranty comes standard with the unit.
For complete technical information on MPD-F06B, visit mgpowerusa.com/product or email info@mgpowerusa.com.
About Magic Power Technology Inc.
Magic Power Technology Inc. (Corporate office located in Sunnyvale, CA.) designs, develops, manufactures and distributes power supplies. We market our products primarily to industrial control vectors, telecommunications, medical equipment manufacturers, and embedded system markets. For more information on our company and products, please visit www.mgpowerusa.com.
Contact
Fred Hung
Magic Power Technology Inc.
Phone: 408.329.4793
Email: info@mgpowerusa.com
http://www.mgpowerusa.com
