Modular Heater provides concentrated, high power.

Press Release Summary:



High Power Reflector, a 40 kW fiber-insulated, modular heater, for use in foundry and metal processing industries, is designed for power up to 10 kW/ft² at 1650°C. Each module consists of heating elements set into ceramic fiber and contained in sheet-steel casing. Standard unit is 24 x 24 in. and multiple units can be joined together in rows or squares. Heater is suitable for single billet heating, aluminum melting furnace, and ladle heater applications.



Original Press Release:


Kanthal Launches High Power Modular Heater


Heating specialists Kanthal are launching six new products in their Superthal range of heating modules. Each new product has been designed and developed with specific end use applications or industries in mind.

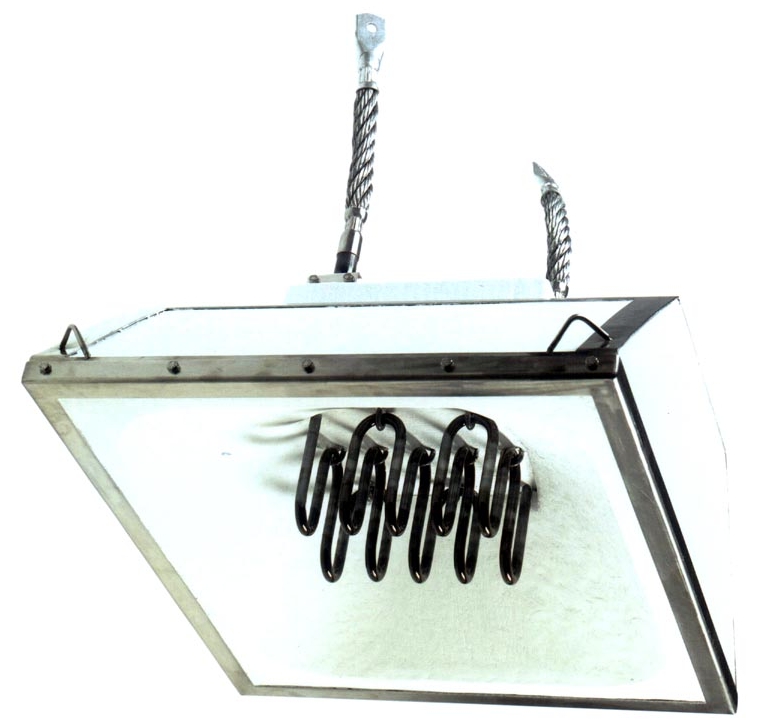

The Kanthal High Power Reflector is a new, compact, fibre insulated modular heater designed for use in the foundry and metal processing industries. Each module consists of Kanthal Super heating elements set into ceramic fibre and contained in a sheet steel casing. Combined contact and hanging straps are pre-
installed for easy connection to a standard power supply.

Designed for power up to 10kW/ft² (110kW/M²) at 1650°C, the Kanthal High Power Reflector provides concentrated, high and clean power, suitable for single billet heating, aluminium melting furnace and ladle heater applications.

The standard unit size is 24" x 24" (600mm x 600mm) and multiple units can be joined together in rows or squares.

Specification

Width 24" (600mm)
Height 24" (600mm)
Depth 9" (230mm)
Power 40kW
Voltage 66V @ 1650°C
Current 605 amp @ 1650°C
Power density 10kW/ft²(110kW/m²)
Element temperature up to 1650°C
