Miniature Couplings are suited for micro applications.
Press Release Summary:
Available in aluminum or stainless steel, single-piece beam couplings feature multiple spiral cuts to accommodate angular and parallel misalignment as well as axial motion. They come in 20 sizes with ODs as small as 3/8 in. and bores as small as 3/32 in. Offered in 7 sizes of set screw or clamp style hubs, Oldham couplings are comprised of 2 aluminum hubs with drive tenons that mate with floating center member. They come in ODs from ½ in. and bores from 1/8 in.
Original Press Release:

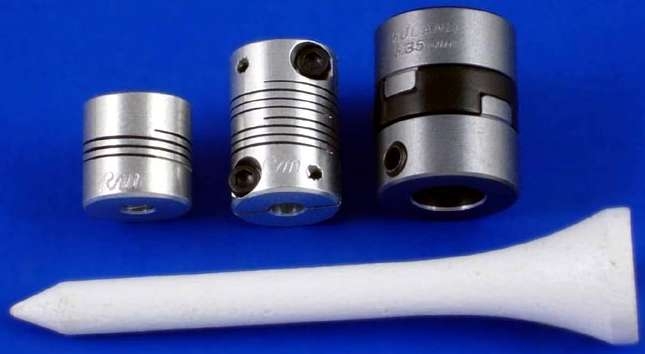

Miniature Beam Couplings and Oldham Couplings for Micro Applications
Marlborough, April 2005. Ruland Manufacturing Co., Inc. has extended its beam couplings and Oldham couplings line to include miniature sizes suitable for micro component applications. Beam couplings are offered as standard parts in twenty different body sizes with outside diameters as small as 3/8" (9 mm) and bores as small as 3/32" (3 mm). Oldham couplings are offered in seven sizes of set screw or clamp style hubs with outside diameters starting at ½" (13 mm) and bores starting at 1/8" (3 mm).
Ruland beam couplings feature multiple spiral cuts to accommodate angular misalignment, parallel misalignment, and axial motion with modest bearing loads. The multiple cut pattern also provides for high torsional stiffness and higher torque capabilities when compared to single beam couplings. Available in aluminum for low inertia or stainless steel for higher torque, these single piece design couplings are zero backlash. Ruland beam couplings conform to industry standard lengths, fitting in confined spaces and allowing for easy retrofits in existing equipment.
Oldham couplings are comprised of two aluminum hubs with drive tenons that mate with a floating center member. This design allows for easy sliding to accommodate misalignment. Oldham couplings have very light bearing loads since the only resistance caused by misalignment is frictional. They also have the advantages of electrical isolation and relatively low cost. The couplings accommodate angular and axial misalignment, but are especially useful in applications where parallel misalignment is present. The replaceable center discs are available in two materials to suit different applications. Nylon discs are compliant to dampen vibrations and reduce noise. Acetal discs are designed especially for precision applications. They offer zero backlash and high torque capacity.
Common applications for miniature beam and miniature Oldham couplings include medical devices, test and measurement instruments, inspection equipment, small encoders, stepper motors, and tachometers.
