Meter-Mix Dispensing System offers portable operation.

Press Release Summary:




Supplied by pumps or pressure tanks, Servo-Flo® 704-PGM proportions, mixes, and dispenses infinite volumes of 2-part polyurethanes, epoxies, silicones, and acrylics. Dual servomotor design enables system to dispense materials at various fluid ratios and flow rates without making mechanical changes to equipment. Offered in 3 levels, operator interface control selects preset dispense program of fluid volume settings and output flow rates for different-size part batches or extruded bead sizes.



Original Press Release:

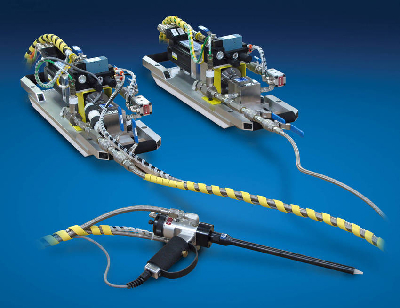

New Portable Gear Meter System for Dispensing 2-Part Adhesives



PLYMOUTH, MI--Sealant Equipment & Engineering, Inc.'s new Servo-Flo® 704-PGM two-component, variable-ratio, high-volume, meter-mix dispense system is ideal for moving the 2-part dispensing system to the point of application. The operator can easily move the system in pieces through small openings or store the system in a small confined area.

The dual-servomotor design is designed to dispense materials at various fluid ratios and various flow rates without making any mechanical changes to the dispensing equipment. Adjustments to ratio or material flow are made electronically at the operator interface.

The Servo-Flo 704-PGM is a continuous flow dual-gear meter system which precisely proportion, mixes and dispenses infinite volumes of two-part polyurethanes, epoxies, silicones and acrylics. The dual-servomotor design provides fixed and variable flow-rate dispensing or variable flow-rate profiling, which varies the dispense rate, on-ratio, during filling operations for optimum part quality and production cycle time.

Three levels of operator interface controls are available to handle the meter-mix dispense process requirement. The system operator interface control quickly selects a preset dispense program of fluid volume settings and output flow rates for different-size part batches or extruded bead sizes. The system controller also accepts inputs from an automation controller to select different stored flow and volume programs for multi-part dispensing requirements.

The meter system accepts low- to high-viscosity materials and is supplied by pumps or pressure tanks supplied by Sealant Equipment & Engineering, Inc. The Servo-Flo 704-PGM system can also be frame mounted, cart mounted or fully enclosed.
Product information is available online at SealantEquipment.com/sf704

Sealant Equipment & Engineering, Inc. is a leading manufacturer of precision fluid dispense systems and valves, is ISO 9001:2000 registered and designs, manufactures and integrates production-engineered dispensing systems to robotically, automatically and manually apply one- and two-component adhesives, sealants and lubricants for product assembly manufacturers worldwide.
