Metal Pushbutton Switch features latching action.

Press Release Summary:




Available in single- and double-pole versions, Model MSM LA offers point or ring illumination, actuator travel of greater than 5 mm, and switching voltages up to 125 Vdc/250 Vac. Unit comes in 19 and 22 mm mounting diameters, with red, green, or blue illumination, making it suited for application in dimly lit areas or to indicate On/Off status. Featuring IP67 protection rating from front, stainless steel vandalproof switch withstands temperatures from -40 to +85°C.



Original Press Release:



Metal Pushbutton Sports Added Features



Raised actuator and illumination options increase range of applications for latching action switch

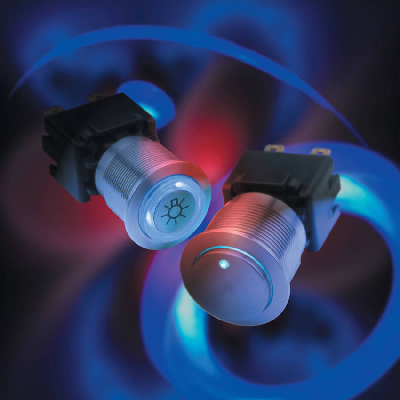

Santa Rosa, California, May 14, 2009 - Schurter's vandalproof metal pushbutton switch with latching action now offers point illumination in addition to ring illuminated types. The series is available in double-pole or the newly added single-pole version. The attractive new design also offers an actuator with increased actuating travel of greater than 5 mm.

Available in red, green or blue, illumination, the MSM LA is excellent for applications in dimly lit areas or to indicate the switches ON/OFF status. Switching voltages are up to 125 VDC / 250 VAC. The resting position of the actuator also indicates switching status, both visually and by touch. In the OFF state, the actuator position protrudes from the housing; in the ON state, it is depressed into the housing.
This provides a user-friendly actuating function and also prevents inadvertent switching, e.g. caused by objects leaning on the switch. In addition to physical and visual indication, the MSM LA may be used in conjunction with audible devices, thereby meeting various feedback requirements of the ADA.

The MSM LA is available in 19mm and 22mm mounting diameters and carries an IP 67 seal
protection rating from the front. The robust stainless steel switch withstands temperatures ranging from -40 °C to +85 °C and is ideal for use in harsh environments.

Applications include various types of control panels used in marine, automotive and aircraft; industrial controllers for manufacturing equipment including process and packaging equipment, self-service kiosks and vending equipment, public and institutional security access systems, audio and entertainment systems, medical diagnostic and hospital equipment. Laser lettering and symbols are possible for all types in standard or customer-specific characters.

The MSM LA micro switch is UL, CSA and ENEC approved. The micro switch is supplied
separate from the housing for pre-wiring before installation. Lead time is stock to six weeks for standard types. Pricing starts at around $ 13.00 each in 100 piece quantities. Information about Schurter can be found at www.schurterinc.com. For sales and product information, contact Cora Umlauf at 800 848-2600 or info@schurterinc.com.

About Schurter Inc.

The Schurter Group, founded in Switzerland in 1933, is an internationally recognized manufacturer and supplier of electronic components for the high-tech industry. Schurter's product innovation focuses in four strategic business areas including fuses, connectors including EMC filter components, circuit breakers for equipment, and human to machine input systems. Schurter, Inc. Santa Rosa, California, is the exclusive
North American sales and distribution office for the Schurter Group.
