Manifold System includes flow meter with 1-20 gpm range.

Press Release Summary:




To replace outdated mechanical flow meters in paint mix rooms, Flow Meter and Manifold System adapts to current paint recirculation and transfer systems. Unit, constructed of 316 stainless steel, features JVM-60CG flow meter, RT-Ex2 battery-powered digital display, and ¼ in. NPT adapter for pressure gage. Unit also comes with 3 full port ball valves with complete bypass system and tri-clamp connections with Teflon® o-rings.



Original Press Release:

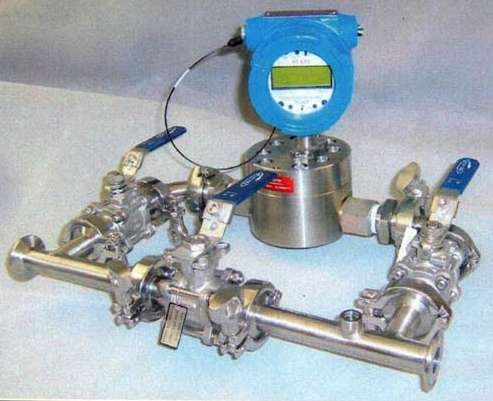

Flow Meter & Manifold System by AW Company



AW Company is pleased to announce the addition of the Flow Meter and Manifold System. This unit is designed to replace your older, outdated mechanical flow meters in your paint mix rooms. The AW Company manifold system is designed and manufactured to easily adapt to your current paint recirculation and transfer systems. Simply, install and start the flow!!

The standard AW Company manifold is constructed of 316 Stainless Steel, and features:

o JVM-60CG flow meter - with a flow range of 1-20 GPM
o RT-Ex2 battery powered digital display - 4 year battery life, no power to run to your system
o ¼" NPT adapter for your pressure gage
o Three full port ball valves with complete bypass system
o Tri-clamp connections with Teflon o-rings

Should maintenance be required, bypass piping keeps your system up and running eliminating costly downtime. The Tri-clamp connections allow quick removal of the flow meter. Our unique meter design permits disassembly and cleaning in a few short minutes.

For those that prefer remote monitoring, the RT-Ex3 option provides a 4 to 20 mA signal and limit outputs that can notify your paint crew of low or high flow conditions or even when the system is out of paint.
