Low-Profile, 6-Pin SIM Card Reader features tray function.

Press Release Summary:




Along with 1.61 mm profile, FMS006-7000-0 has tray function to accommodate applications requiring frequent change of SIM card or access to card without opening of enclosure. Insulation body of card reader is made out of LCP, while metal cover and additional reinforcements are made out of SUS. This promotes stability and coplanarity. Additionally, gold-plated, 2-point contacts ensure uninterrupted contact reliance during vibration/shock.



Original Press Release:



New SIM Card Reader with Tray Function

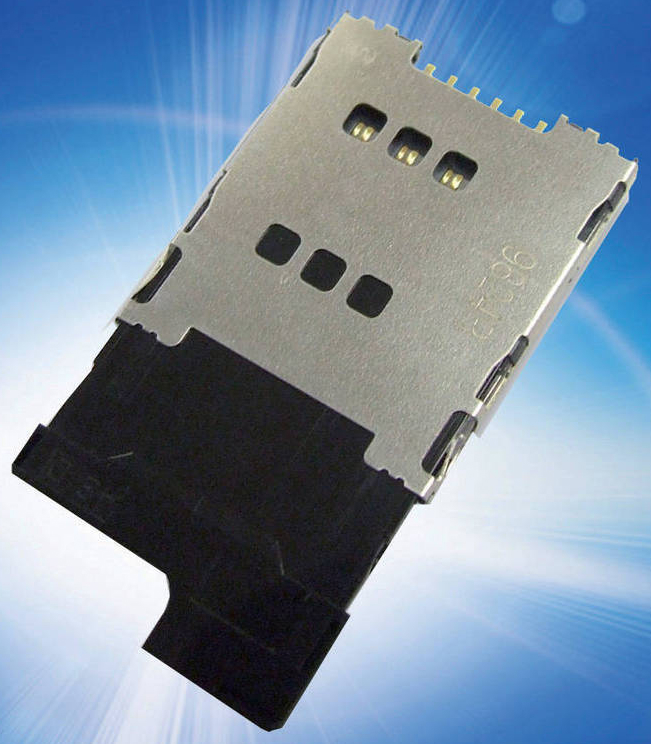

Munich - Yamaichi Electronics launches the FMS006-7000-0, a super low-profile SIM Card reader equipped with a tray.

With the FMS006-7000-0 Yamaichi enlarges its portfolio of high-quality SIM card readers. The special feature of this 6-pin reader is the tray function. It is particularly suitable for applications requiring a frequent change of the SIM card or the easy access to the card without opening of the enclosure. The SIM card is placed in the tray and then inserted with the tray into the card reader. Thus the SIM card is completely protected by the card reader housing.

The stop function of the tray is a major advantage. This means that it can be extracted only to a defined distance in order to allow the comfortable placing and withdrawal of the card. But if required the tray can also be removed completely from the reader through additional pulling force.

The insulation body of the card reader is made out of LCP, the metal cover and the additional reinforcements are out of SUS. For this reason the body has an excellent stability and the coplanarity is ensured.

Another outstanding feature are the gold-plated two-point contacts which ensure uninterrupted contact reliance during vibrations and shocks.

As the card reader has a super low-profile of only 1.61 mm, it is perfectly suited for applications with strongly reduced design space. The assembly is carried out on the bottom side of the PCB by means of SMT soldering (reversed type).

The SIM card reader is supplied on tape and reel and the tray in trays for fully automated pick and place assembly.

Yamaichi Electronics offer also a wide range of card connectors for all available Flash card and the SIM card standards, e.g. microSD, miniSD, MMCmicro, CompactFlash, xD Card etc. Several multicard versions are also available.

More technical details, electrical specifications and further products for a wide range of other applications can be found under www.yamaichi.eu or directly in the data sheet www.yamaichi.de/pdf/c_fms006-7000.pdf or in the catalogue "Connectors & Sockets 2009" which can be ordered on the website.

For any product queries please write to: info@yamaichi.de

About Yamaichi Electronics
Yamaichi is a market leader for test & burn-in sockets, connectors and connection systems - areas in which reliability and function safety are essential for the success of the whole project. Yamaichi has established itself very quickly on the world market as a manufacturer of high-quality and reliable components for ambitious applications in the following sectors: photovoltaic, automotive, medical, telecommunications infrastructure, industrial automation, mobile computer technology, mobile telephones, GPS systems, printers, digital cameras, camcorders, as well as electronic devices in the retail trade, industry and electronics.
