Load Cell offers ranges to 20,000 lbs.

Press Release Summary:



Model 75a pancake-style, tension and compression type load cell provides +/-0.1% FS non-linearity and internal amplifier for voltage or current output. It has hermetically sealed, all welded stainless steel construction, providing resistance to side loads. Load cell features life cycle rating of approximately 10E+09 fully reversed cycles and standard operating temperature from 0 to 185 deg F. It can be certified for use in hazardous areas.



Original Press Release:

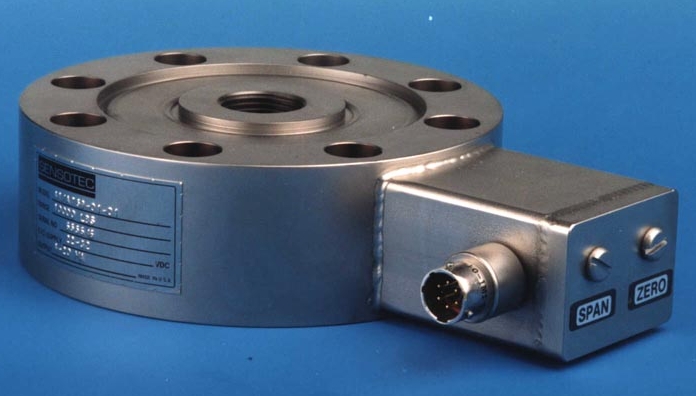

High Output, Pancake Style Load Cell


Sensotec's Model 75a high output, pancake-style load cell offers the combination of rugged construction, ±0.1% FS non-linearity, and the convenience of internal amplifier for voltage or current output. High output reduces the effects of signal noise, and eliminates the need, in most cases, for a signal conditioning card on the user's data acquisition system.

The Model 75a is a tension & compression load cell with hermetically sealed, all welded stainless steel construction. The rugged construction provides a high resistance to side loads and a life cycle rating of approximately 10E+09, fully reversed cycles. The Model 75a is offered in ranges to 20,000 lbs and has a standard operating temperature range from 0 to 185 deg F. These units can be certified for use in hazardous areas. An optional internal buffered shunt calibration circuit makes set-up easy.

Available now from Sensotec. Prices begin at $945. Details in our new 2002 catalog, or on-line at www.sensotec.com.

SENSOTEC, Inc.
2080 Arlingate Lane, Columbus, Ohio 43228, USA
Toll Free: 800-848-6564 Fax: 614-850-1111
E-mail: sales@sensotec.com
www.sensotec.com
