Linear Guideways incorporate recirculation system.

Press Release Summary:

Combining lube-retaining end caps and sealed bearing blocks, Linear Guideways feature minimized friction for quiet operation. End seals, available with optional double seals and scrapers, offer added protection from contamination. Series ATH is designed for heaviest loads, while Series ATE offers interchangeable block and is suited for precision measuring equipment. Series ATM combines miniature size with ultra-high accuracy, and self-lubricating Series ATH E2 provides low-maintenance operation.

Original Press Release:

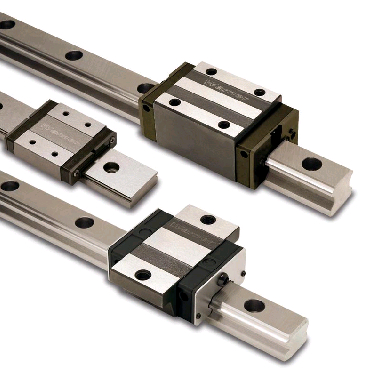

New Linear Guideways from Warner Linear

High speed, high accuracy, low noise

October 26, 2006 - Belvidere, IL - Warner Linear announces the availability of new Linear Guideways, a line of high-speed, high-accuracy guideway assemblies engineered for long-lasting, trouble-free performance.

The new series of linear guideways incorporates a patented recirculation system for smooth linear motion with very little noise. The combination of lube-retaining end caps and sealed bearing blocks reduce friction, ensuring quiet and accurate operation. End seals, available with optional double seals and scrapers, offer added protection from contamination.

Additional features are designed to make the units easy to install and to use. Tapped and threaded holes are referenced to the mounting surface and can be installed from either top or bottom. Clearly marked reference surfaces on both the blocks and rails provide easy, accurate access regardless of mounting location. Fully interchangeable rails make these assemblies ideal for both OEMs and end users.

A wide range of models is available for use in super heavy-duty to light loads and with various levels of precision and dust protection.

ATH Series is designed for the heaviest loads, such as machine centers and transportation equipment.
ATE Series offers an interchangeable block and is ideal for precision measuring equipment and woodworking machinery.
ATM Series combines a miniature size with ultra-high accuracy for applications such as medical and IC manufacturing equipment.
ATH E2 is a self-lubricating model providing clean, low-maintenance operation for electronic, medical, and manufacturing machinery.

For more information about Warner Linear Guideways, visit, call 800-234-3369 or fax 815-389-6212. Write to Warner Electric, 449 Gardner Street, South Beloit, Ill. 61080

Headquartered in Belvidere, Ill., Warner Linear is a global supplier of linear actuators, rotary actuators, actuator controls, and linear guideways. Warner Linear is a member of Altra Industrial Motion, a world-class marketing and manufacturing leader with hundreds of years of industrial manufacturing experience.
