LED Light Bar has 2 in. profile and produces 1,000+ lm.

Press Release Summary:

Able to be mounted in space-limited locations, 9 in. long LEDP3W-6 features six 3W CREE® XLamp XR-E® LEDs that produce 228 lm each. Heavy-duty fixture assembly, constructed of extruded aluminum with unbreakable polycarbonate lens, is IP68-rated waterproof to 3 m. Operating from 9–32 Vdc, light bar has internal LED drivers that actively monitor voltage and heat levels and allow connection to dimmers or pulse controllers. Fixture produces 10° spot beam; 40° beam versions are available.

Original Press Release:

Larson Electronics Introduces LED Low Profile Light Bar with High Output

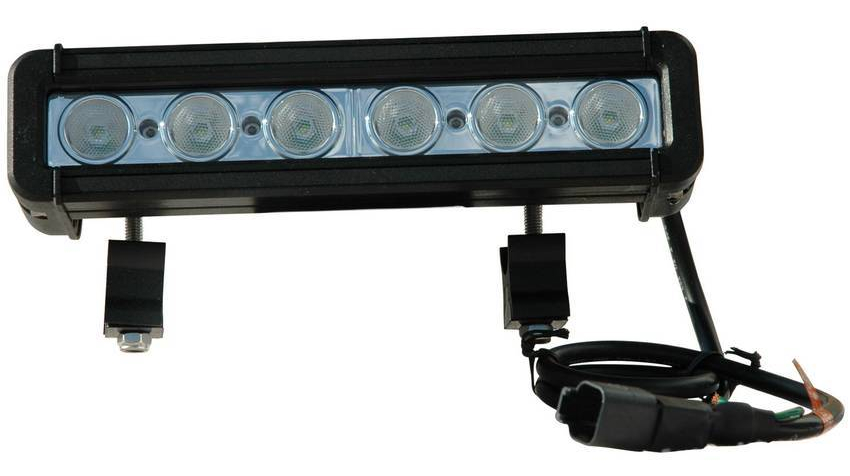

The Larson Electronics LEDP3W-6 High Intensity LED Light Bar offers high power light output in a compact yet rugged design that can be mounted in locations where space is at a premium. Producing over 1,000 lumens in a compact 9 inch long by 2 inch high fixture, this LED light is ideal for professionals in military and law enforcement operations as well as boaters and outdoor enthusiasts who want high power lighting that can stand up to abusive conditions.

The Larson Electronics LEDP3W-6 high intensity LED light bar is a compact yet extremely durable lighting solution for those who need a high power source of illumination that is easily installed yet able to withstand rugged use. This LED light bar is designed to provide a versatile light fixture that can be mounted in space limited locations without sacrificing durability or output. The heavy duty fixture assembly is constructed of extruded aluminum with an unbreakable polycarbonate lens to provide excellent durability. The assembly is IP68 rated waterproof to 3 meters of submersion, making this high power light fixture ideal for offshore or boating applications where wetness and humidity is an issue. Internal LED drivers actively monitor voltage and heat levels to assure the highest output and longevity possible while also allowing these light bars to operate with any voltage from 9 to 32 volts DC. These internal controllers also allow the connection of dimmers or pulse controllers to produce reduced output or a strobing or flashing effect if desired. The LED assembly consists of six CREE XLamp XR-E® three watt LEDs producing 228 lumens each paired with high purity optics to produce a 10 degree spot beam for long reach. Also available are 40 degree beam versions which produce a much wider and shorter spread of light for applications where floodlighting is preferred. Mounting is provided by included sliding aluminum mounting blocks with vibration absorbing rubber bushings and stainless steel hardware for easy installation using existing mounting holes and secure placement even under rough conditions. The high output and compact size of these powerful LED lights makes them popular with military and law enforcement professionals as well as boaters and outdoorsmen in the public sectors who want the highest power and reliability in a heavy duty light. These LED lights are far more durable than halogen or HID fixtures and can withstand extremes of temperature and environments while providing 50,000 hours of operation that no traditional incandescent of HID fixture can match.

“The LEDP3W-6X2 high intensity LED light bar can serve as an ideal spreader light for boat decks, a headache rack for work vehicles or an inspection light for a manufacturer’s assembly line,” said Rob Bresnahan with LarsonELectronics.com.  “This LED light’s versatility stems from its IP67 watertight rating, heavy duty aluminum construction, high vibration resistance and intense white light output.”

Larson Electronics produces a full range of industrial and commercial lighting equipment, Led light bars, LED boat lights, light towers, and LED work lights. To view the entire Larson Electronics line of industrial grade lighting solutions, visit them on the web at Larsonelectronics.com. You can also call 1-800-369-6671 to learn more about all of Larson Electronics’ lighting products or call 1-214-616-6180 for international inquires.
