Pyrometers and Infrared Thermometers
IR Thermometers feature on-screen menu system.
Share:
Press Release Summary:
Combining contact and non-contact measurement capability in one tool, Fluke 566 and 568 provide temperature measurement ranges of -40 to 650°C/-40 to 1,202°F and -40 to 800°C/-40 to 1,472°F, respectively, at 1% measurement accuracy. With user interface available in 6 languages, users can access features such as adjustable emissivity, alarms, and data logging via soft-key menu displayed on dot matrix LCD screen. Both handheld models include K-type thermocouple bead probe.
Original Press Release:

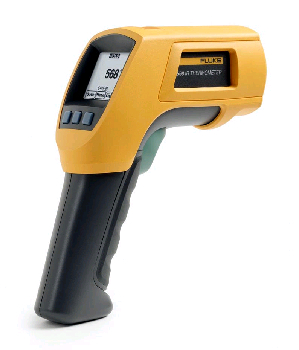

Fluke 566 and 568 Thermometers
Fluke 566 and 568 Thermometers Provide a Total Temperature Measurement Solution for Industrial, Electrical and Maintenance Professionals Broad infrared functionality; on-screen menu system for quick access to advanced features
Everett, Wash. - Fluke Corporation, the global leader in handheld electronic test and measurement technology, today announced the Fluke 566 and Fluke 568 Thermometers, which feature broad infrared (IR) temperature measurement functionality, an on-screen menu system and a dot-matrix display enabling users to take even complex measurements quickly, easily, and from greater distances.
Both of the rugged Fluke 566 and Fluke 568 handheld thermometers combine contact and non-contact temperature measurement capability in one single, easy-to-use tool, providing a total and convenient temperature measurement solution for industrial, electrical and maintenance professionals. The thermometers provide a broad temperature measurement range from -40 °C to 800 °C /-40 °F to 1472 °F (Fluke 568) or -40 °C to 650 °C/-40 °F to 1202 °F (Fluke 566) at one percent measurement accuracy, making them appropriate for a wide variety of inspection applications.
With a user interface designed for intuitive operation and available in six languages, users can access advanced features such as adjustable emissivity, alarms and data logging with a few pushes of a button via a soft-key menu displayed on the dot-matrix
LCD screen. The display has two levels of backlight to facilitate viewing even in challenging lighting conditions.
Both models include a K-type thermocouple bead probe enabling users to take contact measurements immediately. The thermometers also are compatible with all standard miniconnector type-K thermocouples. MIN, MAX, AVG, and DIF temperature values are captured to help users save time and reduce calculation errors. Audible and visual alarms can be set easily to instantly alert users of measurements outside of set limits.
The Fluke 568 features a distance-to-spot ratio of 50:1 and the Fluke 566 has a distance-to-spot ratio of 30:1, enabling users to measure smaller objects or from further away; and the adjustable emissivity feature with built-in materials table or numerical setting allows users to measure a wide variety of surfaces more accurately and to easily compensate for shiny surfaces.
The Fluke 568 Thermometer can capture and store up to 99 points of data, which can be viewed on the thermometer or downloaded quickly to a computer via USB connection for later analysis and trending, using the included FlukeView® Forms software. With the USB connection and FlukeView Forms software, the Fluke 568 also can be used for real-time, hands-free monitoring of temperatures to troubleshoot processes and equipment.
In addition to the Fluke 566 and Fluke 568 Thermometers, the Fluke 560 Series includes the Fluke 561 Infrared Thermometer for basic temperature measurement applications in plant maintenance, HVAC and electromechnical environments.
Pricing and Availability
The Fluke 566 Thermometer is available immediately at a US list price of $379.00 and the Fluke 568 Thermometer is available immediately at a US list price of $499.99. For more information on the Fluke 560 Series Thermometers and other temperature measurement solutions from Fluke, or to find a Fluke distributor, visit www.fluke.com,
or contact Fluke Corporation, PO Box 9090, Everett, WA USA 98206, call (888) 308-5277, fax (425) 446-5116, or e-mail fluke-info@fluke.com.
Fluke Corporation
Fluke Corporation is the world leader in compact, professional electronic test tools. Fluke customers are technicians, engineers, electricians and metrologists who install, troubleshoot, and manage industrial electrical and electronic equipment and calibration processes for quality control.
