In-Line Dispenser accommodates up to 6 dispense heads.

Press Release Summary:



Based on positive displacement auger valve, Multi-Head Dispenser offers overall dispense capacity of 40,000 d/h. Ability to mount dispense needles with different diameters achieves variety of dot sizes; system chooses correct needle from information in component library. It uses program patterns from MIMOT placement system to create automatic dispense program and can dispense solder paste, adhesives, epoxy, or underfill for PCB production.



Original Press Release:



MIMOT Launches New In-line Multi-head Dispenser

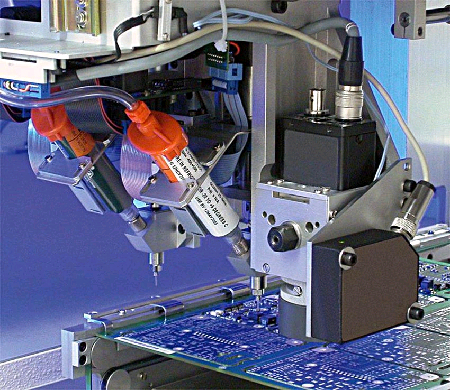

Irvine, California, USA - MIMOT announces the availability of a new in-line dispenser, based on a highly accurate positive displacement auger valve. The unit can be equipped with up to 6 dispense heads, and with an overall dispense capacity of 40,000 d/h.

The ability to apply up to 6 individual dispense heads to a single dispenser offers the user a multitude of advantages. One example is the ability to mount dispense needles with different diameters to achieve a variety of dot sizes. The system chooses the right needle automatically from the information in the component library. This high degree of adaptation allows the seamless production of a PCB with program variations. For example, one single machine can dispense several different materials, each using its own program sequence. Materials as solder paste, adhesives, epoxy or underfill can be applied.

Programming is simplified; the new dispense system uses use the program patterns from the MIMOT placement system to create an automatic dispense program. The combination MIMOT's dispense unit and its highly flexible pick and place system gives the user a powerful tool for the assembly of double-sided PCB's.

MIMOT is a global leader in flexible SMT placement equipment, with facilities in Europe, Asia, and the Americas. MIMOT has led the industry in flexible, accurate placement technology for over 25 years, and builds its own board handling modules and precision dispensers as well as its placement machines. For more information, visit www.mimot.com, or contact MIMOT North America at 16 Technology Drive, Suite 133, Irvine, California, 92618 USA; Tel. (949) 727-4600, Fax (949) 727-4687.
