Heavy-Duty Wall Fans are capable of continuous operation.

Press Release Summary:




Shipped fully assembled and ready to install, WEB fans have industrial-grade gray enamel finish and feature heavy-duty 16 ga steel venturi panel with tubular steel bracing, steel blade impeller, as well as permanently lubricated drive shaft bearings and ball bearing motor. Products employ single- or 3-phase continuous duty motor and come in 24–60 in. dia sizes, with belt drive capacities to 39,000 cfm. Voltage options inlcude 115/230 V, single-phase; 230/460 V, 3-phase; and 575 V, 3-phase.



Original Press Release:

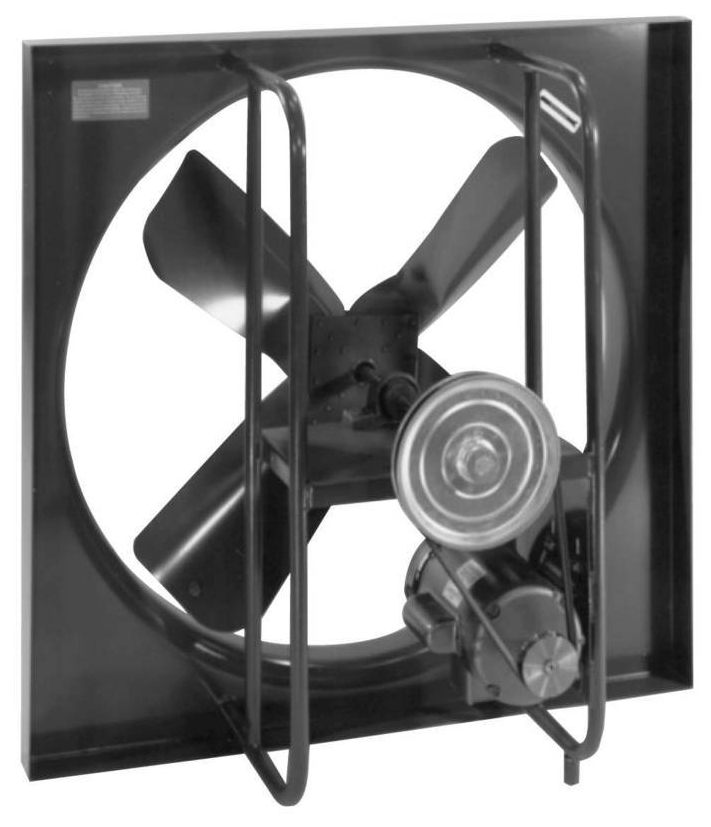

WEB Heavy Duty Wall Fan



Continental Fan’s WEB Heavy Duty Wall Fans are shipped fully assembled, tested and ready to install. WEB fans feature a heavy duty 16 Ga. steel venturi panel with a rugged tubular steel bracing. Long life is assured with permanently lubricated drive shaft bearings and a ball bearing motor. WEB fans are available in diameters from 24” through 60”, with belt drive capacities ranging up to 39,000 cfm.



FEATURES & BENEFITS

• Heavy duty 16 Ga. steel venturi panel with tubular steel bracing

• Shipped fully assembled, tested and ready to install

• Industrial grade gray enamel finish

• Steel blade impeller

• Permanently lubricated drive shaft bearings

• Permanently lubricated ball bearing motor

• Single or three phase continuous duty motor

• Sizes range from 24” to 60”

• Belt drive capacities to 39,000 cfm

• Available in the following voltages:

- 115/230V 1 phase

- 230/460V 3 phase

- 575V 3 phase



ACCESSORIES & OPTIONS

• MSRG option includes:

- Mounting box

- Discharge shutter

- Rear box guard kit



The WEB Heavy Duty Wall Fan, a better AIRFLOW solution from:

Continental Fan.........better AIRFLOW by DESIGN™



For more information contact Pat Putnam or visit us on the web to view our full line of Commercial Fans.



CANADA – Continental Fan Canada Inc.

12-205 Matheson Blvd E, Mississauga, ON L4Z 3E3

T: 905-890-6192 • 800-779-4021 • F: 905-890-6193

USA - Continental Fan Manufacturing Inc.

203 Eggert Road, Buffalo, NY 14215

T: 716-842-0670 • 800-779-4021 • F: 716-842-0611
