Heat Sink Attachment System increases efficacy, resistance.

Press Release Summary:

Improving thermal transfer as well as vibration and shock resistance, clipKIT™ is compatible with straight fin, pin fin, cross cut, and slant fin heat sinks. Attachment assemblies feature maxiGRIP™ and superGRIP™ frame clip and spring clip. Products are available for 15–45 mm component packages and designed for heat sinks with base thickness of 1.75–4 mm. Plastic frame clip and stainless steel spring clip are corrosion resistant and flame retardant.

Original Press Release:

Advanced Thermal Solutions Raises the Bar in Heat Sink Thermal, Vibration and Shock Performance

clipKIT™  -  Innovative Heat Sink Attachment System – Available Exclusively from Digi-Key

Norwood, MA – Advanced Thermal Solutions, Inc., has introduced clipKIT™, a heat sink attachment system that can be used with most industry standard, off the shelf straight fin, pin fin, cross cut or slant fin heat sinks. The new system improves on heat sink performance in thermal transfer, and vibration and shock resistance. The clipKIT™ line is available exclusively from Digi-Key.

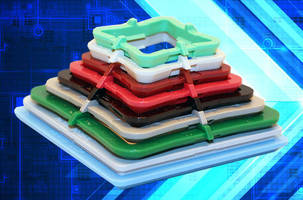

clipKIT is a line of patented, reliable heat sink attachment assemblies featuring the widely used maxiGRIP™ and superGRIP™ frame clip and spring clip. They are available for 15 – 45mm component packages and are designed for heat sinks with a base thickness of 1.75 to 4mm.

Instead of relying on thermal tape or epoxy, which can damage the board or component during rework, the reliable clip attachment system provides a secure hold without the risk of damaging the PCB, saving time and cost. The ultra-thin plastic frame clip and stainless steel spring clip are corrosion-resistant, flame retardant and pass Telecordia shock and vibration standards, ensuring the heat sink will reliably stay in place.

clipKIT attachments eliminate the need to drill holes in a PCB, saving valuable real estate on the PC for high density routing. The thin frame clip occupies minimal space around a component’s perimeter, compared to push pin attachments or stand-off hardware which leaves little space on already overcrowded PCBs. The two-part attachment system provides a uniform force which enhances heat transfer and improves TIM performance by up to 20%.

"Thermal management is critical for today's systems," said Dr. Kaveh Azar, CEO of Advanced Thermal Solutions. "We developed clipKIT to facilitate the attachment of custom and off the shelf heat sinks.  We're launching them exclusively with Digi-Key because they are uniquely close to the engineering community and their challenges."

“We are pleased to be the exclusive distributor of the ATS clipKIT assemblies,” said Tom Busher, VP, Global IP&E at Digi-Key. “We believe this new product line will meet and exceed our customers’ thermal management needs and we’re looking forward to offering more customized solutions from ATS in the future.”

The full clipKIT line can be conveniently ordered with no minimum from Digi-Key, the exclusive global distributor of clipKIT and many other ATS thermal management products.

More information on clipKIT is available on the ATS website, http://www.qats.com, by emailing ats-hq@qats.com or calling 781-769-2800.

About Advanced Thermal Solutions

Advanced Thermal Solutions, Inc. (ATS) in its 26th year, is a leading-edge engineering/manufacturing company focused on the thermal management of electronics. ATS is world renowned for its innovative thermal management solutions, including its portfolio of more than 5,000 high- and ultra-performance heat sinks, liquid cooling solutions, research-quality test equipment, and leading-edge R&D. qats.com. Their main R&D and manufacturing campus is located in the USA in Norwood MA.
