Hand-Held DSO/DMM includes built-in USB port and data logger.
Share:
Press Release Summary:
Providing 22 automatic waveform measurements, dual-channel Model 860FC features 60 MHz analog bandwidth, 3.8 in. color LCD, 2.5 Gs/S equivalent sampling rate, and horizontal zoom function with auto set-up. Data logger, included in 6,000 count DMM, records and plots measurement values versus time on LCD for up to 20 days using compressible time axis. USB 2.0 Host Port connects with Flash Memory drive, enabling mass storage of waveforms and data logger CSV files.
Original Press Release:

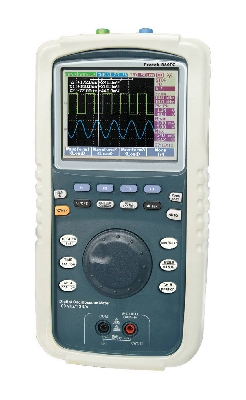

Hand-Held DSO/DMM with Built-In USB Port & Data Logger
Englewood, NJ...An upgraded, advanced version of the Protek's Hand-held, 60MHz DSO/
DMM now includes as standard a 2.0 USB Host Port, a 3.8" Color LCD display and real-time Data Logging. This along with such features as:Wavelink(TM) Software for remote control via PC, 125KB record length, each channel, and up to 200Ms/S Sampling Rates are also included.
Advantageously user priced at $1,449 and complete with an AC/DC adaptor, USB Cable and
rechargeable battery pack, the dual channel Model 860FC has a 60MHz analog bandwidth; high resolution 3.8" LCD color display; auto set-up and horizontal zoom; 2.5Gs/S equivalent sampling rate; dual channel waveform Math and FFT; plus horizontal zoom function with auto set-up. In addition, it provides 22 automatic waveform measurements. The USB Host Port connects with a Flash Memory drive enabling mass storage of waveforms and data logger CSV files. All future Firmware updates may be installed via the USB Port.
The 6000 count DMM includes a Data Logger that records and plots the measurement values
versus time on the LCD for up to 20 days using an innovative compressible time axis. The data logged values may be stored in a Flash ram which attaches to the USB host port.
In adherence to CATIII 600V standards, the new DSO/DMM is delivered with a Holster, two
(2) Scope probes and Operator's Manual. It includes the USB Host Port, USB Cable and
rechargeable battery pack which are usually extra cost options from other suppliers.
20MHz and 40MHz models with upgraded features will be available as part of the firm's Series800 Hand-held DSO/DMM group.
Since 1989, Protek, a division of Intelient Technologies has specialized in the marketing of high performance, cost-effective quality test instruments. For complete product details visit www.protektest.com. All products are offered through a national distribution network.
