Gyratory Sifter combines capacity and performance.

Press Release Summary:




BigMax(TM), with potential for 240 ft² of screen area in one machine, offers 12 ft of screen deck length to accommodate extended retention time and accurate separations of product. Functionality allows 1-4 separations in single machine, depending on desired deck configuration, and material can be fed at single point or independently to each deck. Also, screens can be replaced from either end of machine without removing ball trays.



Original Press Release:



SWECO Introduces Its Biggest Sifter Yet



High Capacity and High Performance in the Same Machine

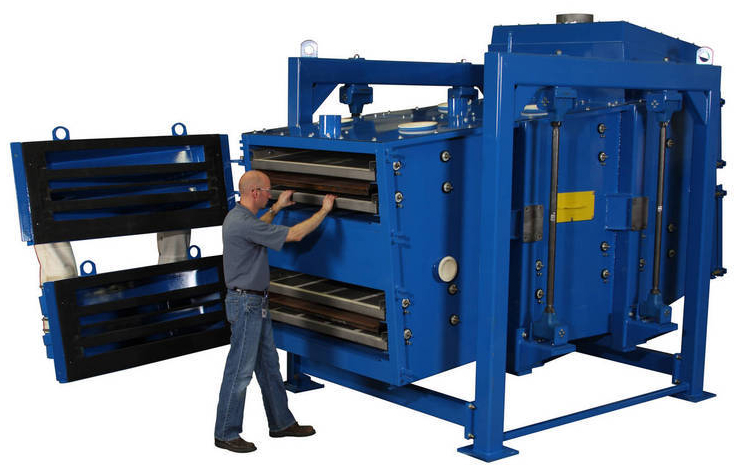

Florence, KY - SWECO, a business unit of M-I L.L.C., is pleased to introduce the BigMax(TM) Gyratory Sifter. Building on the unparalleled success of the SWECO GyraMax(TM) line of sifters, the BigMax offers high capacity and high performance in the same machine. Known for their durability, reliability and accuracy of separation, GyraMax sifters are used throughout the world to handle the most demanding screening applications such as activated carbon, fertilizer, frac sand, limestone, petroleum coke, plastic pellets, PVC powder, roofing granules, salt, sugar, and more. Now with the introduction of BigMax, SWECO adds high capacity screening to the list of GyraMax features.

With the potential for 240 ft2 (22 m2) of screen area in one machine, the BigMax offers 12 feet (3.7 m) of screen deck length, perfect for long retention time and accurate separations of product.

The BigMax is accommodating enough to allow one to four separations in a single machine, depending on the desired deck configuration. This flexibility is available because of the BigMax's ability to feed the material at a single point or independently to each deck.

The BigMax allows for quick and easy screen changes with no heavy lifting or tedious clips to engage. The screens can be replaced from either end of the machine without the need to remove the ball trays. And the over- and under-size material from each deck can be sampled individually, eliminating the guesswork about which screen has failed.

SWECO serves the minerals, chemical, food, pharmaceutical, paper and many other industries with a complete line of separation, sizing and milling equipment.

For more information, please visit www.sweco.com or e-mail info@sweco.com.
