Frame Grabber features 800 Mbps transfer rates.

Press Release Summary:

Able to lock camera connectors for machine vision applications, PCIe-FIW62 PCI Express® IEEE1394.b frame grabber is suited for area scan color/monochrome inspection applications. It supports IEEE 1394.b-based cameras via 2 high-speed IEEE 1394.b ports, providing point-to-point data transmission. Unit ensures reliable connections with up to 2 cameras through direct-connect IEEE1394.b connectors that have screw-locking mechanism to ensure IEEE 1394.b cables do not vibrate loose.

Original Press Release:

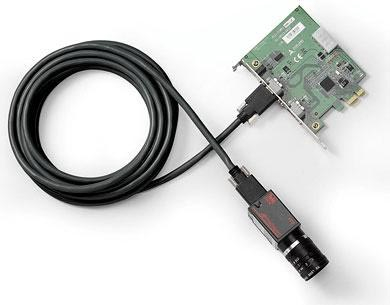

ADLINK Introduces 2-CH PCI Express® IEEE 1394.b Frame Grabber

PCIe-FIW62: 800 Mbps transfer rates and locking camera connectors for machine vision applications

March 27, 2008, Taipei Taiwan. ADLINK Technology Inc. (TAIEX:6166) announces the release of the PCIe-FIW62, a PCI Express® IEEE1394.b frame grabber designed specifically for area scan color / monochrome inspection applications, such as PCB inspection and FPD surface inspection. The PCIe-FIW62 supports IEEE 1394.b-based cameras via two high-speed IEEE 1394.b ports, providing point-to-point data transmission of up to 800 Mbps through a PCI Express® x1 lane.

The PCIe-FIW62 ensures reliable connections with up to two cameras through direct-connect IEEE1394.b connectors which are designed with a screw-locking mechanism to make certain the IEEE 1394.b cables will not vibrate loose. Each connector is also equipped with an LED to conveniently display camera connection status.

ADLINK also offers IEEE 1394.b compliant shielded cables to reduce signal noise. These IEEE 1394.b cables also provide an improved signal-to-noise ratio and reduced wiring cost (including both power supply and image data transmission wiring) over analog cables.

ADLINK provides complete vision hardware packages which cameras, frame grabber cards, and all related accessories. ADLINK Frame grabber

ADLINK Technology provides a wide range of embedded computing products and services to the test & measurement, automation & process control, gaming, communications, medical, network security, and transportation industries. ADLINK products include PCI Express-based data acquisition and I/O; vision and motion control; and AdvancedTCA, CompactPCI, and COM Express modules for industrial computing. ADLINK strives to minimize the total cost of ownership (TCO) of its customers by providing customization and system integration services, maintaining low manufacturing costs, and extending the lifecycle of its products. ADLINK is a global company with headquarters and manufacturing in Taiwan; R&D and integration in Taiwan, China, and the US; and an extensive network of worldwide sales and support offices.
ADLINK is ISO-9001, ISO-14001, and TL9000 certified, is an Associate Member of the Intel® Embedded and Communications Alliance, an Executive Member of PICMG, and a Sponsor Member of the PXI Systems Alliance. ADLINK is a publicly traded company listed on the TAIEX Taiwan Stock Exchange (stock code: 6166).

For more information, please contact our worldwide offices nearest your region.
9F, No.166 Jian Yi Road, Chungho City, Taipei, Taiwan 235
Tel: +886-2-82265877
Fax: +886-2-82265717

8900 Research Drive,
Irvine, CA 92618, U.S.A.
Toll Free: 1-866-4-ADLINK
Fax: 1-949-727-2099
