Epoxy Adhesive bonds sensors to CNC machine tools.
Press Release Summary:
Suited for aerospace manufacturers, ASTM E-595 compliant Aremco-Bond(TM) 631 two part, modified epoxy has tensile shear strength of 3,000 psi as measured by ASTM D1002-94, volume resistivity and dielectric strength of 1.2 x 1,014 Wcm and 440 V/mil respectively, and maximum operating temperature of 204ºC. It features total mass loss of 0.75% at 125ºC, and collected volatile condensable materials of 0.35% at 25ºC. Epoxy is resistant to various acids, bases, salts, and organic fluids.
Original Press Release:
New Aremco-Bond 631 Now Used to Bond Optical Windows
Valley Cottage, NY - August 22, 2008
SUMMARY

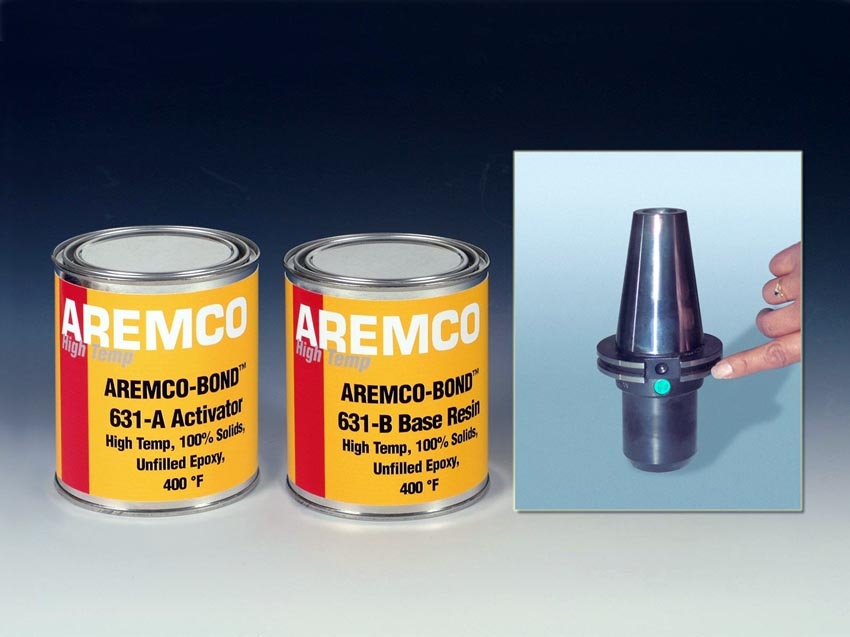

A new general purpose, high strength, high temperature epoxy, Aremco-Bond(TM) 631, developed by Aremco Products, Inc., is now used to bond sensors to CNC machine tools.
FEATURES
Aremco-Bond(TM) 631 is an advanced, two part, modified epoxy system which exhibits exceptional mechanical, electrical and thermal properties. Its tensile shear strength is 3,000 psi as measured by ASTM D1002-94; volume resistivity and dielectric strength are 1.2 x 1014 ohm-cm and 440 volts per mil, respectively; and its maximum operating temperature is 400 °F (204 ºC).
Aremco-Bond(TM) 631 is resistant to a wide variety of acids, bases, salts and organic fluids. Extended immersion studies have been conducted with no effect in various concentrations of hydrochloric acid, nitric acid, phosphoric acid, sulfuric acid, sodium chloride, ammonium hydroxide, sodium hydroxide, jet fuel, gasoline and toluene. Many other chemicals have been tested as well.
Aremco-Bond(TM) 631 has also passed outgassing studies according to ASTM E-595. This feature is particularly useful for aerospace manufacturers that are interested in the outgassing properties of materials. The total mass loss (TML) at 125 ºC is 0.75%. The collected volatile condensable materials (CVCM) at 25 ºC is 0.35%.
Aremco-Bond(TM) 631 mixes easily in a 1-to-1 ratio and cures at room temperature or by applying low heat.
It is supplied in pint, quart and gallon containers as well as 50ml dual-barrel cartridges that can be loaded to mechanical or pneumatic guns for automatic mixing and dispensing.
Please contact Aremco's Sales Engineering Department for more information about this advanced epoxy formulation.
