End Mills allow roughing/finishing of steel/exotic materials.
Press Release Summary:
Manufactured with submicron grain carbide, HEVR-5 and HEVR-RN-5 5-flute, variable-pitch end mills are designed to cut ferrous material. Speeds/feeds range from 80-250 sfm and 9-27 ipm for SS, 60-125 sfm and 2-10 ipm for high-temperature alloys, 500-600 sfm and 23-76 ipm for steels, 400-600 sfm and 24-73 ipm for cast irons, and 160-190 sfm and 7-15 ipm for titanium. They are coated for oxidation resistance and hardness for slotting, peripheral milling, ramping, and helical interpolation.
Original Press Release:
Helical HEVR-5 Family Offers Increased Feed Rates, Reduced Chatter

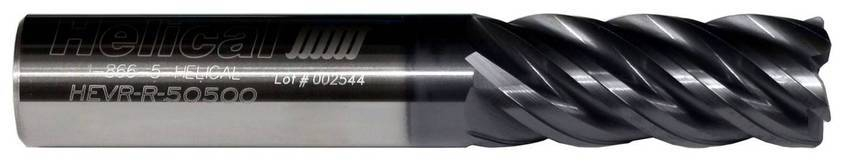

GORHAM, ME - Helical Solutions' new HEVR-5 and HEVR-RN-5 five-flute, variable-pitch end mills are designed for roughing and finishing of steel and exotic materials with increased feed rates and reduced chatter.
HEVR-5 and the longer-reach, reduced-neck HEVR-RN-5 tools are crafted of certified premium sub-micron grain carbide and feature geometries specifically engineered to cut ferrous material. The tools are available with an AlTiN (titanium aluminum nitride) coating for oxidation resistance and extreme hardness for slotting, peripheral milling, ramping and helical interpolation of Stainless and other steels, cast irons, titanium alloys as well as cobalt- nickel- and iron-based high-temperature alloys.
The HEVR-5 tool series features corner radii for added strength and has a variable-pitch design for increased depth of cut, up to 1 times the diameter of the tool resulting in an increased metal removal rate along with minimizing any possibility of chatter. Additionally, and due to its unique design features, it is not uncommon for customers to utilize the HEVR-5 for both roughing and finishing, reducing the number of tools and setups.
The HEVR-RN-5 series is designed for applications requiring extended reach into pockets or machining around obstructions. The stub flute length and a reduced neck contribute to excellent tool rigidity even considering the greater tool length.
Speeds and feeds for the tools range from 80 to 250 sfm and 9 to 27 ipm for Stainless, 60 to 125 sfm and 2 to 10 ipm for high-temperature alloys, 500 to 600 sfm and 23 to 76 ipm for steels, 400 to 600 sfm and 24 to 73 ipm for cast irons, and 160 to 190 sfm and 7 to 15 ipm for titanium.
"Although these tools can be used for roughing applications, they are ideal for finishing the hardest and most-difficult-to-machine materials," says Helical Solutions National Sales Manager Scott Tiehen. "And with the higher speeds and feeds, and increased tool life they provide, they offer significant benefits in efficiency and cost."
Helical recommends using high-pressure coolant, flood, mist or dry milling with air blast when machining with these tools, which are available in ¼-inch, 5/16-inch, 3/8-inch, ½-inch, 5/8-inch, ¾-inch, 1-inch and 1 ¼-inch diameters.
Complete specifications and cutting parameters can be found at www.1helical.com under the "catalog" tab.
Helical Solutions supplies high-quality, high-performance cutting tools for aerospace, energy, medical and every other industry and application. Founded in 2001, Helical specializes in tools for hard-to-cut materials like aluminum and titanium and in tools customized for particular customer applications. Among the tools Helical offers are coolant-thru tools, form tools, chamfer end mills, corner-rounding end mills, double-angle cutters, dovetail cutters, lollipop cutters, radius end mills and taper end mills. Helical is headquartered in Gorham, ME.
