Emergency Stop Pushbutton is designed for easy installation.

Press Release Summary:




Smile E-stop unit features centered mounting holes, as well as one or two M12 connectors to simplify installation. Outputs are either 2 dual braking contacts or Tina interface that allows connection of several devices in dynamic safety circuit per category 4 standards. Measuring 84 x 40 x 52 mm, product includes LED indication of status, actuating force of 35 ±5 N, and current consumption of 47 mA. It is protected to IP65 and rated for 50,000 operations.



Original Press Release:

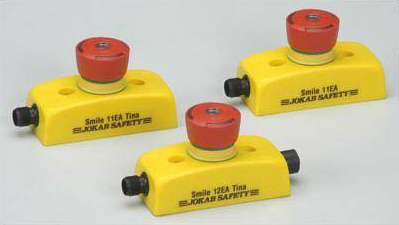

New 'Smile' E-Stop Offers... Durable Space Saving Design!



A small and cost effective solution

Time, space and a high safety category are essential factors for many machines today. This is why Jokab Safety has developed a new small and robust E-stop. The size and the centered mounting holes make it easy to install, especially on aluminum extrusions which are today frequently used for machine building and safe guarding. The 'Smile' E-stop unit has one or two M12 connectors enabling quick installation and easy replacement. The outputs provided are either two dual ' braking' contacts or a Tina interface which makes it possible to connect several E-stop devices in a dynamic safety circuit according to category 4. LED indication of E-stop status is also provided.

Technical Data Smile E-stop

o Size

o Length 84 mm + M12 contact (12mm)

o Width 40 mm

o Height 52 mm

o Connections M12 5-pole male connector

o Weight Approx 78 grams

o Material polypropylene (PP)

o Protection class IP 65

o Mounting Two M5 internal hexagon screws

o LED on E-Stop

o GreenSafety device ok, Safety circuit ok

o FlashingSafety device ok, Safety ciruit broken

o RedSafety device and Safety circuit broken

o Current consumption 47 mA

o E-Stop button

o Actuating force 35±5 N

o MaterialPolymide (PA66) as per UL94 V0

o Material, contacts Silver alloy gold plated

o Life, mechanical > 50,000 operations
