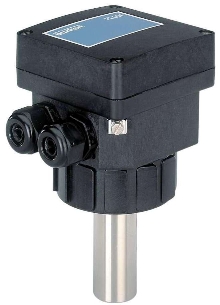

Electromagnetic Flow Transmitter operates in 2 modes.
Press Release Summary:
Accommodating liquids with conductivity over 20 µS/cm, solid-state Type 8041 Electromagnetic Flow Transmitter operates as transmitter and/or ON/OFF control. It is compatible with pipe diameters from ½-16 in. and features -4 to +302°F temperature range, 233 psi max fluid pressure capability, and 0.33-33 fps measuring range. Featuring 4-20 mA current output in addition to pulse rate and relay outputs, unit has accuracy of ±2% or ±4% of measured value.
Original Press Release:
Burkert Introduces Type 8041 Electromagnetic Flow Transmitter
Irvine, Calif., February 14, 2005 - Burkert announces the Type 8041 Electromagnetic Flow Transmitter, designed to operate as a transmitter and/or ON/OFF control. Able to function at high temperatures/pressures and compatible with pipe diameters from 1/2 inch to 16 inches, the solid-state sensor Type 8041 finds use in applications that include:
Waste water treatment
Flow control of drinking water (FDA approved)
Laundries (water consumption measurement/control)
Swimming pools (pump protection/flow control)
Food processing cleaning cycle monitoring (FDA approved)
Irrigation
Accommodating liquids with a conductivity > 20 µS/cm, the Type 8041 features a -4°F to 302°F medium temperature range and 233 psi maximum fluid pressure capability (with a brass or stainless steel fitting). Measuring range is 0.33 fps to 33 fps. Accuracy (for a measured value of 3.3 fps to 33 fps/-4°F to 266°F) is ±2% of measured value using Burkert's Teach-In automatic calibration mode, ±4% of measured value using standard K-factor. Linearity is ±(1% of measured value + 0.1% of FS), while repeatability is 0.25% of measured value. Materials for the Type 8041's wetted parts are 316L stainless steel for the sensor finger and electrodes, EPDM for the unit's seal, and PEEK for the armature.
The Type 8041 features a 4-20 mA current output, plus pulse rate and relay outputs. The unit can be used in conjunction with various devices, including a PLC, Burkert's AirLINE Type 8644 Remote Process Actuation and Control System, Type 2712 Pneumatically Operated Globe Control Valve and Type 8025 Digital Flow Transmitter.
For more information, please contact marketing-usa@burkert.com; (800) 325-1405; www.burkert-usa.com.
About Burkert
Burkert is the world leader in fluid control systems, with dedicated Burkert offices and/or manufacturing facilities in more than 50 countries. Having more than 50 years' experience in automated fluid processes, Burkert delivers fluid control solutions that integrate intelligence into valve and/or sensor systems. Burkert offers a wide range of control capabilities and "smart" devices, including built-in proportional controllers, ASi and Fieldbus connections, internal and external set points, and analog outputs. Burkert manufactures the most reliable and innovative solenoid valves, process valves, pneumatic actuation systems, sensors, controllers and fluid control systems. In addition, Burkert provides custom fluid control solutions in a wide range of markets including water treatment, food, beverage, pharmaceutical, medical equipment, biotechnology, textile, semiconductor and general industrial processing.
