Dust Collector suits low headroom installations.
Press Release Summary:
Side Winder Model DKCD 72030 is a 30 HP, 7,500 CFM dust collector featuring side mounted fan and flat envelope-shaped filters. It is only 122 in. tall, and typically used for collection of wood dust from maintenance shops and removal of powders caused by mixing or blending. Dust is collected in four 55-gal drums. Unit can be installed outdoors or indoors if local fire codes permit.Original Press Release:
New Dust Collector For Low Headroom Installations
Most dust collectors require a substantial amount of headroom to

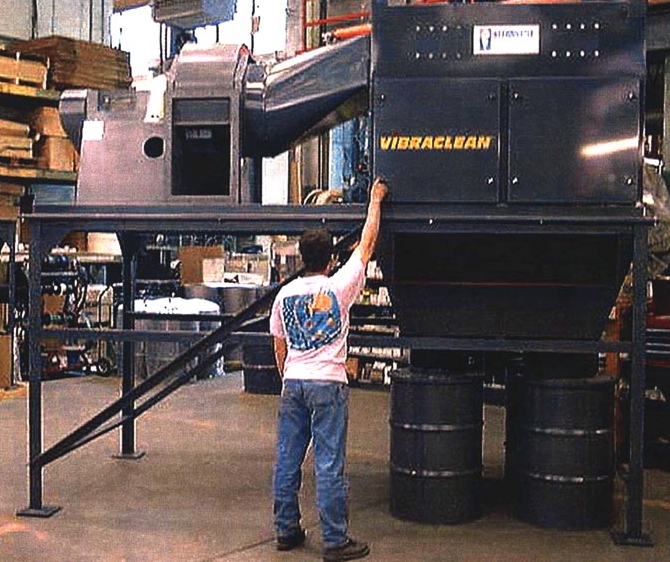

accommodate the necessary filters and fan. This is fine for many installations, but not for all. What about those situations where only minimal headroom is available? Now there is an ultra effective solution. A new addition to the Sternvent Vibraclean series of dust collectors called appropriately, the Side Winder, a 30 hp, 7,500 CFM powerhouse, with a low profile, due to its side mounted fan.
The Side Winder requires less than half the height of a traditional filter tube shaker baghouse. The Model DKCD 72030 is only 122" tall. It features a unique "low profile" fan and special flat envelope-shaped filters. Typical uses of the Side
Winder include the effective collection of wood dust from school classrooms or maintenance shops and the removal of powders caused by mixing or blending.
The DKCD 72030 unit is often installed outdoors under the overhang of the building, so that for esthetic reasons, it is lower than the roofline. It can be also be installed indoors, if local fire codes permit. Dust is collected in four, easy-to- empty, 55-gallon drums.
Established in 1952, Sternvent specializes in small to medium size industrial dust collectors (1,000-15,000 CFM) which include high efficiency cyclones, compact shaker units with manual or motorized shakers, Jet-Pulse bag and cartridge units, and oil mist collectors used in the woodworking, metalworking, and chemical industries. Sternvent equipment is available with basic modifications such as special filter media, alternate blowers, special height dust containers, and special body construction, such as stainless steel.
