Displays provide shorter lead times.

Press Release Summary:




Size 2 line by 40-character display provides 5.55 x 3.2 mm size characters for point of sale terminals and test equipment. Overall display size is 182 x 33.5 x 14.5 mm for LED backlight version and maximum 9.5 mm for reflective version, both with dot pitch of 0.65 x 0.70 mm. Unit is available in TN and STN fluids with temperature ranges of 0°C to +50°C standard and -20°C to +70°C wide temperature.



Original Press Release:

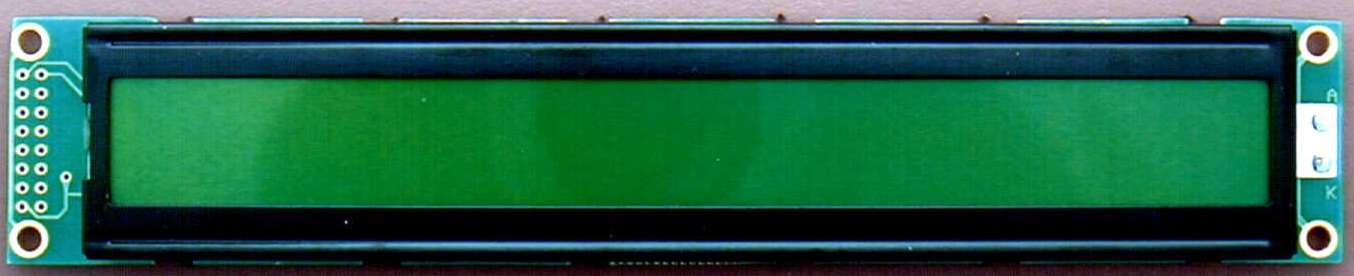

ACM4002E Series Character Module



Aliso Viejo, California-AZ Displays, Inc. adds another model to its 40 x 2 format character display line up. This popular size 2 line by 40-character display provides lower pricing and shorter lead times. The large 5.55mm by 3.2mm size characters are used in
applications including point of sale terminals, test equipment and similar applications. AZ Displays, Inc. continues to improve its price and product offering through a constant process of design and development.

Features:
oOverall size is 182 mm (W) x 33.5mm (H) x 14.5mm (D) for LED backlight version and maximum 9.5mm (D) for reflective version
oDot pitch of 0.65 mm (W) x 0.70 mm (H)
oAvailable in TN and STN fluids
oOffered with and without an LED backlight
oStandard (0°C to +50°C) or wide temperature (-20°C to +70°C) range fluid options

Prices start at $9.71 at 1,000 pieces.

Full product specifications can be found on our web site at www.azdisplays.com or contact:
Ryan Magner
LCD National Sales Manager
AZ Displays, Inc.
75 Columbia
Aliso Viejo, CA 92656
Phone: (949) 360-5830, Fax: (949) 360-5839
Web Site: www.azdisplays.com
Email: sales@azdisplays.com
