Digital Thread Gage handles items up to 1.5 in. long.

Press Release Summary:




Using digital camera, optics, and software, Digital Thread Gage measures and displays parameters of screw threads without contact, including thread lead, diameters, root and crest truncation, and flank angles. Measurements are accurate to 0.0002 in. and tolerances can be applied to each measurement. System then identifies components that fail to meet tolerance and alerts operator, or with optional equipment, automatically sorts them into PASS and FAIL bins.



Original Press Release:



Threaded Components are Automatically Inspected by Resec's Digital Thread Gage



BERGENFIELD, NJ--A new system measures and displays important parameters of screw threads, quickly, accurately, and without contact. The system, which centers on sophisticated optics, is available from its developers, Resec Systems, Inc. of Bergenfield, NJ.

Among the characteristics checked and numerically displayed are;

  • Thread Lead;

  • Diameters...major, pitch, and root;

  • Root and crest truncation;

  • Flank angles.

    Measurements are accurate to two ten-thousandths of an inch (0.0002 in.); items up to 1.5 in. long can be handled.

    The Resec Digital Thread Gage uses a digital camera and special optics to capture the thread's profile. From this image, the firm's proprietary software accurately measures and instantly displays key thread parameters. In addition, tolerances can be applied to each measurement. The system then identifies components that fail to meet tolerance and alerts the operator or, with optional equipment, automatically sorts them into "PASS" and "FAIL" bins. Measurements can also be saved to a data collection file.

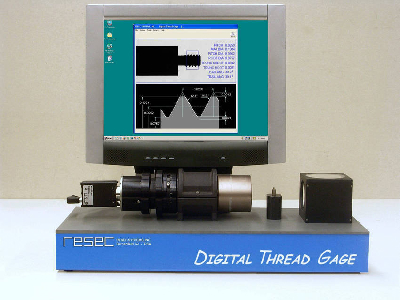

    In operation, the user need only place a threaded part on the system stage. The thread's parameters are immediately displayed on the monitor. The photo shows the two easy-to-read displays of a typical thread: a tabulated display (top) and a graphic display (bottom). The lower display shows averaged dimensions of the threads enclosed in the blue border in the upper display.

    Optional automatic feeders are available for rapid, unattended operation.

    For further information, contact:

    Robert Schulkin, President

    Resec Systems, Inc.

    93A S. Railroad Ave.

    Bergenfield, NJ 07621

    www.resecsystems.com

    Tel: 800-394-6758

    Fax: 201-384-6990

    email: rschulkin@ resecsystems.com
