Diagnostic Oscilloscope performs automotive power tests.

Press Release Summary:




With input voltage range of 8-36 V, 4-channel Model A0E20001 offers more than 20 automatic measurement functions, automatic cursor tracking measurements, PASS/FAIL check, and FFT spectrum analysis. Unit provides max real-time sampling rate of 200 MS/s in single-channel mode and 100 MS/s in dual channel mode. Operating at 60 Hz, device offers vertical resolution of 8 bits/channel, time base range of 5 ns/div to 1,000 s/div, and buffer size from 10 k to 16 M samples.



Original Press Release:

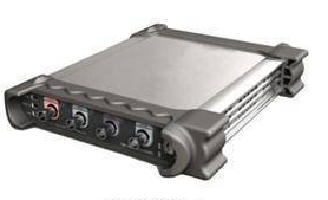

4-Channel Automotive Diagnostic Oscilloscope



Toronto, Canada - GAO Tek Inc. (www.GAOTek.com) has launched its 4-channel automotive diagnostic oscilloscope which has a wide input voltage range from 8 to 36 V making it suitable for vehicle power tests. It has vehicle diagnosis functions, more than 20 kinds of automatic measurement functions, automatic cursor tracking measurements, PASS/FAIL check and fast Fourier transform (FFT) spectrum analysis.

This 4-channel automotive diagnostic oscilloscope, model A0E20001, operates at 60 MHz and supports EXT trigger. It provides advanced trigger types including edge trigger and pulse trigger and includes such trigger modes as auto, normal and single. The diagnostic scope offers a maximum real-time sampling rate of up to 200 MS/s in single channel mode and 100 MS/s in dual channel modes. It provides a vertical resolution of 8 bits/channel and a time base range of 5 ns/div to 1000 s/div. It also has real-time sampling and roll acquisition modes with a buffer size from 10 k to 16 M samples. It displays such measurements as Vpp, Vmax, Vmin, Vmean, Vrms, Vamp, Vtop, Vbase, Vmid, positive overshoot, negative overshoot, cycle mean, cycle RMS, period, frequency, positive pulse width, negative pulse width, rise time (10%~90%), fall time (10% to 90%), positive duty cycle and negative duty cycle. It has addition, subtraction, multiplication and FFT mathematic functions. Additionally, it is compatible with USB 2.0 and is fully plug and play and requires no external power. These features make it ideal for use either in the workshop or on the road to test and measure virtually all of the electrical and electronic components and systems in motor vehicles.

For sales inquiries please contact:

1-877 585-9555 ext. 601 - Toll Free (USA & Canada)

1-416 292-0038 ext. 601 - All Other Areas

sales@gaotek.com

About GAO Tek Inc.

GAO Tek Inc. (www.GAOTek.com) is a global leader in research, development and manufacturing of high performance telecommunication testers, electronic measurement instruments, embedded development tools and other electronic products that serve the needs of electronic professionals internationally.
