Desktop AC/DC Power Supply deliver 220 W continuous output.

Press Release Summary:

Supplied in enclosed, 3.46 x 7.76 x 1.73 in. case with IEC320/C14 inlet for worldwide use, PUP220 Series accept 90-264 Vac universal input and feature efficiencies equal to or greater than 87%. Switching power supplies include single-output models with voltages from 12-48 Vdc, and all models comply with UL, TUV and CE requirements. Additionally, Efficiency Level V-compliant products meet CISPR 22 and FCC Class B emission limits and incorporate protection circuitry.

Original Press Release:

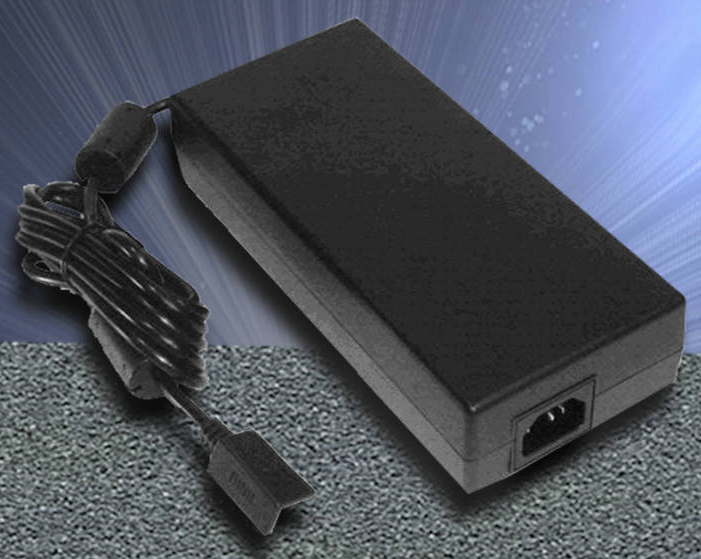

New Level V Compliant 220 Watt Desktop Power Supply

Hudson, MA - The new PUP220 Series' of AC/DC switching power supplies from Protek Power offer 220 watts of continuous output power. They are enclosed in a compact case with an IEC320/C14 inlet for world-wide use. All models meet CISPR 22 and FCC Class B emission limits and comply with UL, TUV and CE requirements. Efficiency Level V compliance ensures OEMs that the PUP220 Series meets worldwide energy efficiency standards.

The PUP220 Series' accept a 90-264VAC universal input. Single output models have voltages ranging from 12VDC to 48VDC. This high power, yet compact, desktop adapter has a 3.46" x 7.76" x 1.73" footprint.

The Series boasts high efficiencies equal to or greater than 87% and1500 VAC input-output isolation voltage from input to output and ground. Comprehensive protection circuitry, including overvoltage and short circuit protection, is inherent in the design. Units have an MTBF of 100,000 hours at full load.

Units are economically priced, with the PUP220 Series starting at $79.00 in OEM quantity, with delivery from stock to 14 weeks ARO. Full specifications are available on-line at or contact our Sales/Technical Group at or (978) 567-9615

Protek Power North America, Inc., 43 Broad Street, Suite B206, Hudson, MA 01749
Telephone 978-567-9615 / Fax 978-567-9601
