DC to DC Power Supplies (Converters)
DC-DC Power Adapters support industrial monitors.
Share:
Press Release Summary:
Designed for fanless versions of panel and rackmount monitors with 24 and 48 Vdc input power, Models TR-LCD-24VDC and TR-LCD-48VDC feature input range of 18-36 Vdc and 34-75 Vdc, respectively. Pure copper heatsink mounted in air tunnel provides passive heat exchange with ambient air temperature up to 60°C, eliminating need for cooling fan and providing silent operation of monitors. Operating at fixed 500 kHz switching frequency, converters have low EMIs compliant with FCC Class A requirements.
Original Press Release:
24VDC and 48VDC Fanless DC-DC Power Adapters for TR-LCDxxxx Panel Mount and Rack Mount Industrial Monitors

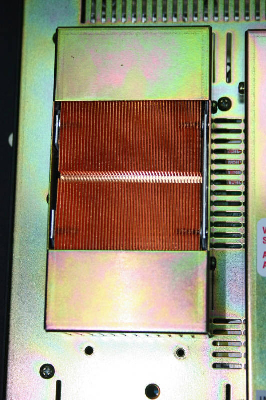

Mississauga, ON - TR-LCD-24VDC and TR-LCD-48VDC are DC adapters for fanless versions of industrial panel and rack mount monitors with 24VDC and 48VDC input power. Pure copper heatsink mounted in air tunnel provides for efficient passive heat exchange with ambient air temperature up to 60°C.
High quality regulated DC-DC converters provide for high efficiency of voltage conversion and wide range of input power to 12VDC required by the monitors.
Operating at a fixed 500 kHz switching frequency these converters have low EMIs compliant with FCC Class A.
High efficiency of the DC-DC converter eliminates need for the cooling fan and provides silent operation of the monitors. It reduces possibility of frequent failures and eliminates need for periodic maintenance.
Highly reliable with MTBF calculated per Bellcore TR-NWT-000332 at 2.1 million hours, these power converters can withstand 3 axes vibration of 5G for installation in moving vehicles and marine ships.
24VDC power adapter has input range of 18 to 36VDC and 48VDC version has input range between 34 and 75VDC.
Transduction 15", 19" and 20.1" monitor series can be powered by 12, 24, 48, 125 and 250VDC input power and also 100 to 275VAC.
For further information on the new TR-LCD-24VDC or TR-LCD-48VDC, contact a Transduction product specialist at 5155 Spectrum Way, Bldg. 23, Mississauga, ON L4W 5A1. Telephone: (905) 625-1907 ext 12. Telephone 2: 1-800-268-0427. Email: sales@transduction.com. Website: www.transduction.com
About Transduction
Transduction is an established manufacturer (1975) of reliable industrial rack mount and panel mount computers, LCD monitors and systems for power utilities, process control, military and telecommunications. We offer rapid prototype development and manufacturing services. Production and service records of each computer or system are kept to assure maximum reliability and support. All Transduction products have a warranty of 3 years but they are designed for maximum longevity to minimize cost of service.
