DC/DC Converters boast cold start up of -55°C.

Press Release Summary:




Operating at -55 to 85°C without derating, 5 W Series AM5E-FZ supports all outdoor applications, including those at risk of being exposed to severe temperature conditions. Series includes 21 models with choice of wide, 2:1 input ranging from 9–72 Vdc, stepping down to single or dual output ranges of 3.3–15 Vdc, at efficiency rates as high as 87%. Housed in 2 x 1 x 0.40 in. case, converters feature fixed switching frequency of 300 KHz and I/O isolation of 1.5 kVdc.



Original Press Release:

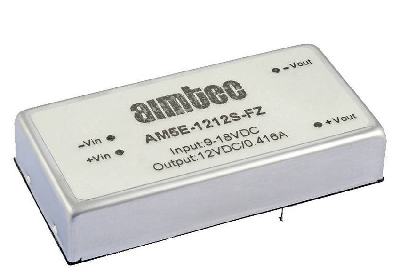

5 Watt DC/DC Converter Boasts Cold Start up of -55°C



Outdoor temperatures in more than 24 regions across Europe and North America have been known to drop to below -45°C. Under such conditions, many outdoor applications fail simply because one or more of their internal components are not designed to operate at below -45°C.



Aimtec’s new 5 watt DC/DC converters series, AM5E-FZ,operates at -55°C to +85°C, without derating, to support all outdoor applications, including those at risk of being exposed to severe temperature conditions.  Such applications include solar inverters, smart meters, transmission equipment, security systems, traffic and advertising signage.



AM5E-FZ series offers 21 models with a choice of wide, 2:1 input ranging from 9 to 72VDC, stepping down to single or dual output ranges of 3.3 to 15VDC, at efficiency rates as high as 87%.  Design engineers will also appreciate the tight line and load regulation of 0.5%(single output models), as it ensures that stable voltages are delivered throughout the operating range, under all loading conditions.



With a fixed switching frequency of 300KHz, designs using the AM5E-FZ seris beneift from a simplified filter design process, which also translates to smaller, more compact filters – an important consideration for many applications.



Other design value features include  I/O isolation of 1.5KVDC, continuous short circuit protection, over load and voltage protection, all housed in a compact 2”x1” case which stands only 0.40” high.



Samples are available from stock and can be ordered immediately from any of Aimtec’s global network of Franchised Distributors.



ABOUT AIMTEC

Headquartered in Vaudreuil-Dorion, Canada, with offices in Europe and Asia, Aimtec is actively involved in the research and development of modular switching power supplies.  Aimtec’s product portfolio includes modular AC-DC andDC-DC switching power converters and LED drivers.  Aimtec’s products are designed to assist its global customer base in reducing engineering design time and expense, while facilitating miniaturization and performance enhancement of their applications.  Environmentally conscious, Aimtec power supplies are designed to boost the efficiency and reduce the carbon footprint of their applications. Visit www.aimtec.com for more information about Aimtec and its products.
