DC-Coupled MEMS Accelerometers suit commercial and military use.

Press Release Summary:

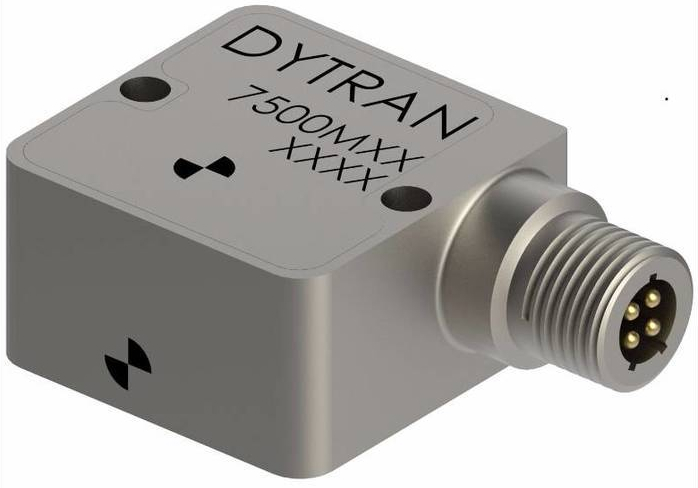

Model 7500M10 and 7500M11 DC-coupled analog variable capacitance accelerometers feature micro-machined capacitive sensing element housed in hermetically sealed stainless steel case. Products include VC accelerometer chip, with high drive, low-impedance buffering for optimal responsiveness. Circuit amp, differential output, and voltage regulator all minimize effects of supply voltage variation. Frequency response is 0-300 Hz and units are available with measurement ranges of 50 and 400 G.

Original Press Release:

Dytran Instruments Introduces High Performance DC MEMS Accelerometers

Chatsworth, California, USA - Dytran Instruments, Inc. (www.dytran.com) a leading designer of piezoelectric and DC MEMS accelerometers, dynamic force and pressure sensors and associated electronics, has introduced a new series of high performance DC accelerometers. The Dytran model 7500M10 and 7500M11 are DC-coupled analog variable capacitance accelerometers designed for both commercial and military applications. The series utilize a micro-machined capacitive sensing element housed in a hermetically sealed stainless steel case to deliver reliable performance in harsh conditions.

The Dytran models 7500M10 and 7500M11 feature a 4-pin radial "Mighty Mouse" connector, designed for use in high-reliability aerospace and defense applications requiring robust environmental performance. Units are available with measurement ranges of 50 and 400 g, have a frequency response of 0 to 300 Hz, and are easily mounted via two 4-40 mounting screws (supplied).

Engineered for zero-to-medium frequency applications, the Dytran 7500M series combines an integrated VC accelerometer chip with high drive, low impedance buffering for outstanding responsiveness. Units house a custom integrated circuit amp, low noise electronics, differential output, and an on-board voltage regulator to minimize the effects of supply voltage variation.

For more information about the 7500M10 and 7500M11 or other products available from Dytran, or to order online, visit www.dytran.com.

Technical Contact:

Ken Supin

Inside Sales Engineer

Phone: (818) 700-7818

Email: info@dytran.com

About Dytran Instruments, Inc.

Founded in 1980, Dytran Instruments, Inc. designs and manufactures a full line of piezoelectric and DC sensors. The company's world-class product range includes miniature and triaxial accelerometer models, high temperature sensors with built-in electronics (IEPE), variable capacitance DC sensors with low-noise differential output, and sensors with built-in TEDS capabilities. Dytran also offers a complete range of impulse hammers, piezoelectric force and pressure sensors, electronics, cables, and accessories for dynamic measurements, with full in-house customization capabilities. Since its founding, Dytran sensors have become among the industry's most popular choices within a variety of applications, including modal and structural analysis; flight test; HALT/HASS/ESS; Health and Usage Monitoring Systems (HUMS); mechanical impact testing; product testing; vehicle dynamics; and space related applications. The team at Dytran prides itself on its high level of customer responsiveness, as well as its focus on developing and maintaining strong customer relationships. The "people factor" is what continues to make Dytran a success.
