Data Logger measures luminance, UV, temperature, and humidity.

Press Release Summary:




In addition to measuring temperature from -30 to 80°C with accuracy of ±0.3°C from 10-40°C, Model TR-74Ui-H measures humidity from 0-99% with accuracy of ±2.5% from 10-85%. Luminosity range covers 0-130k lx and low light resolution to 0.01 lx, while UV range covers 0-30 mw/cm². Housed in 2 x 3 in. package, logger operates from one AA battery and can store up to 8,000 readings x 4 channels for total of 32,000 readings in One-Time or Endless recording mode.



Original Press Release:



NEW High Precision Data Logger for Luminance, UV, Temperature & Humidity!

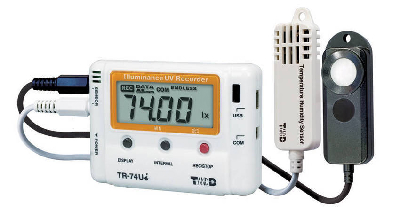

TandD Corporation has introduced its NEW High Precision TR-74Ui-H Four Parameter Data Logger.

This NEW model achieves a temperature measurement accuracy of ±0.3°C (between 10 to 40°C) with an overall range of -30 to 80°C, The humidity measurement accuracy is ±2.5% (at 25°C, 10 to 85% RH) with an overall range of 0 to 99% RH.

The TR-74Ui-H Illuminance UV Recorder can simultaneously measure and record four parameters: Illuminance, Ultraviolet Light (UV), Temperature and Humidity. In addition to these parameters, the TR-74Ui-H is also capable of displaying Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in the LCD display.

The wide Luminosity range covers 0 to 130k lx and Low Light Resolution to 0.01 lx.
The UV Range covers 0 to 30 mw/cm2. Internal Accumulation of Exposure is for both Light and UV.

This compact, lightweight unit is approximately 2" X 3" and operates on one AA battery.
The TR-74Ui-H has a large data capacity which can store up to 8,000 readings times 4 channels for a total of 32,000 readings in One-Time or Endless recording mode.
Simply by connecting to a computer via a USB port, the recorded data can be quickly downloaded with the easy-to-use software.

For additional information on the NEW TR-74Ui-H Data Logger and the complete TandD product line contact:

TandD Corporation

PO Box 321

Saratoga Springs, NY 12866 USA

Phone: 518-669-9227

E-mail: inquiries@tandd.com

Web: www.tandd.com
