Continuous Flex Control Cables feature PVC jacket.
Press Release Summary:
Available in conductor sizes from 18-8 AWG and up to 65 conductors, Series XM cables handle demanding applications, such as high-speed pick-and-place robotic systems. They are oil- and sunlight-resistant and have temperature range of -5 to +90°C. Available unshielded or with braid shield, cables are approved to standards including UL Types TC-ER, MTW, WTTC, and CSA AWM I/II A/B FT4. Conductors are available in red, blue, or black to match standard color coding for AC and DC circuits.
Original Press Release:

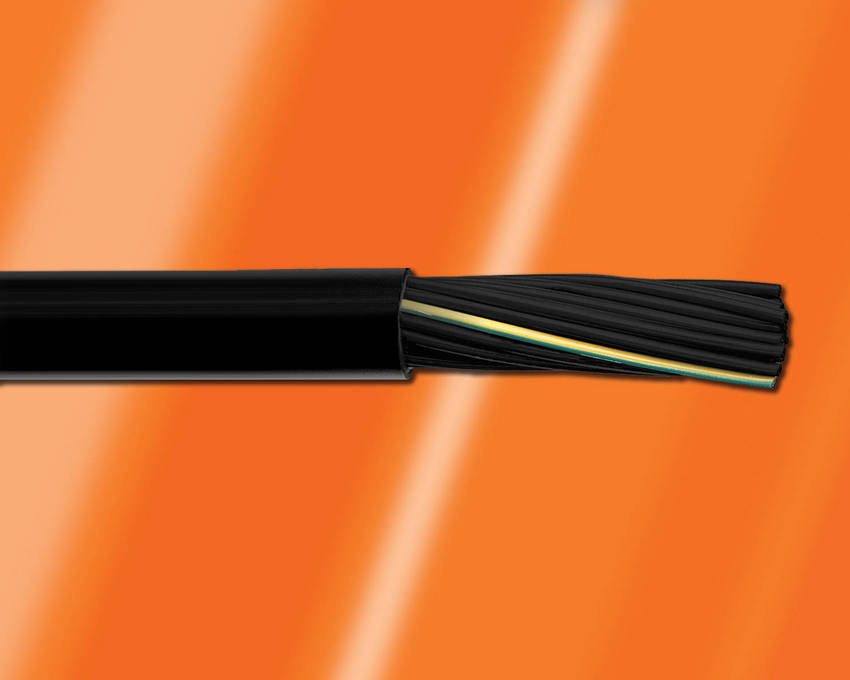

Alpha Wire Unveils Series XM Flexible Control Cable
Specially Formulated PVC Jacket Provides Resilience in Continuous Flex Applications
Elizabeth, NJ,- New Series XM flexible control cable from Alpha Wire provides continuous-duty flexing in a robust PVC-jacketed cable. A new PVC formulation enables continuous flexing in strenuous applications such as high-speed pick-and-place robotic systems, automated material handling equipment, conveyors, and transfer shuttles.
"Although tougher, PVC has traditionally not been considered good candidate for continuous flex applications. However, Series XM's specially formulated PVC jacket handles flexing without cracking or degradation in industrial applications," said Konstantin Khitrik, Product Manager at Alpha Wire. "Even better, the new jacket is more cost-effective, meaning our customers get higher performance from a smaller investment."
Available in conductor sizes from 18 AWG to 8 AWG and up to 65 conductors, oil- and sunlight-resistant XM cables have a dynamic temperature range from -5°C to +90°C. They are approved to a wide range of standards that includes UL Types TC-ER, MTW, WTTC, and CSA AWM I/II A/B FT4. Furthermore, Series XM meets NFPA 79 standards for industrial machinery applications. The cables are available unshielded or with a braid shield for environments with potential EMI/RFI interference. Conductors are available in red, blue, or black to match industry-standard color coding for AC and DC circuits.
For additional information, contact Alpha Wire at 800-52-ALPHA (522-5742) or visit the Company's website at www.alphawire.com.
About Alpha Wire
For over 80 years, Alpha Wire has designed and manufactured industry-leading wire, cable, and tubing products for factory automation, packaging, automotive, alternative energy, and other technically advanced applications. Beyond giving our customers the cables they trust for quality and reliable high performance, we give them the committed service they deserve. We help customers find the best possible solutions to production and manufacturing challenges with small put-ups, logistical excellence, and broad inventory for dependable, same-day shipment
