Comparator/Interrupter offers inputs from ±1 to ±250 V.

Press Release Summary:




Model VM4018 16-channel analog comparator/interrupter provides up to 48 comparator/interrupter channels in single VXI slot. DAC provides reference voltage for each comparator channel. Flexible interrupt feature can be configured to initiate other events autonomously through TTL trigger lines, or interrupt processor. Programmable debounce circuitry eliminates false failures by preventing erroneous readings within user-defined limits.



Original Press Release:

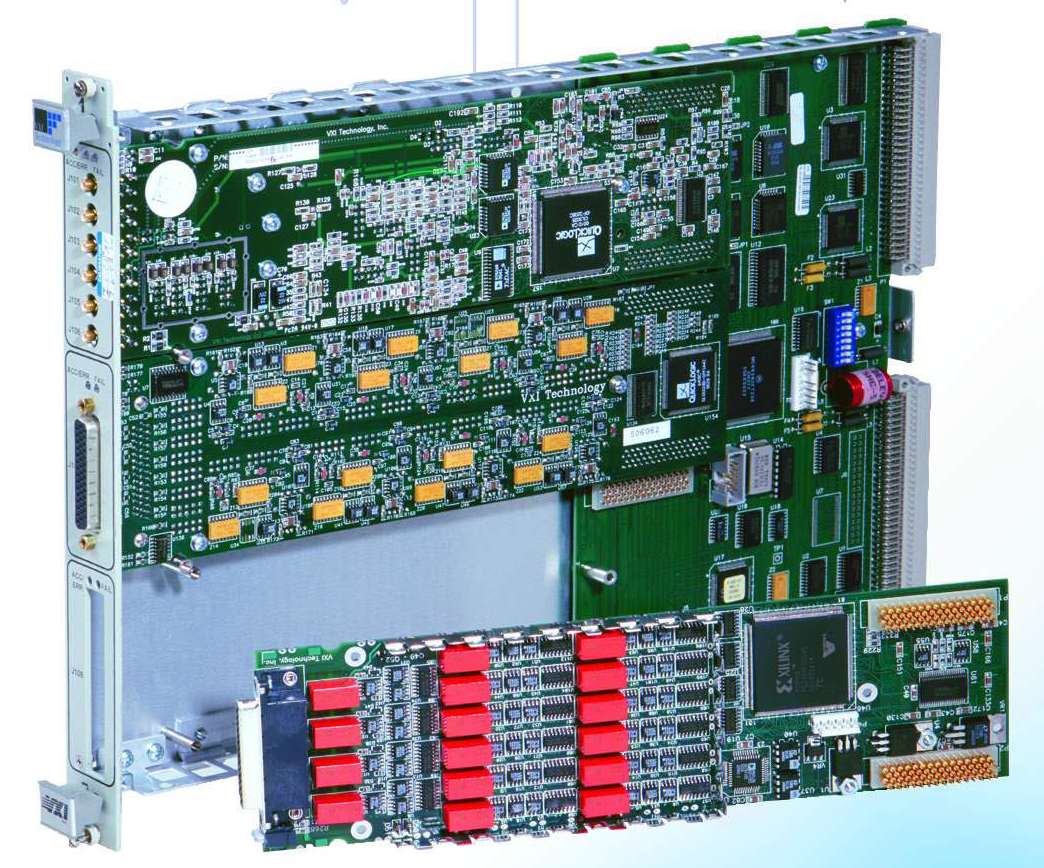

Precision 16-Channel Analog Comparator/Interrupter



Today VXI Technology introduced their VM4018, a precision 16-channel analog comparator/interrupter that further enhances their VMIP family of high-density modular instrumentation. The VM4018 can provide up to 48 precision comparator/interrupter channels in a single VXI slot.

The VM4018 can accurately detect and respond to level changes over a wide range of voltages. A precision DAC provides the reference voltage for each comparator channel, resulting in accuracies greater than 10X over competitive products. Input ranges can be individually selected from ±1V to ±250V. The flexible interrupt feature can be configured to initiate other events autonomously through the TTL trigger lines, or interrupt the processor. Another valuable feature is the programmable debounce circuitry that eliminates false failures by preventing erroneous readings within user-defined limits.

"This product is ideal for applications involving go/no-go testing where a voltage threshold or window must be monitored. It is equally well suited for control applications requiring device shut down if specific parameters are exceeded. Independent
16-channel operation eliminates response latencies common in scanning architectures, thus improving throughput and reducing cost," commented Tom Sarfi of VXI Technology.

Pricing at $2900 Delivery: Stock to 6 weeks, ARO

VXI Technology, Inc. headquartered in Irvine, California, is a global supplier of high-density modular test solutions, based on their award-winning line of modular instruments (VMIP(TM)) and signal switching systems (SMIP(TM)).

For more information about these and other products, simply visit www.vxitech.com, or call 949-955-1894.
