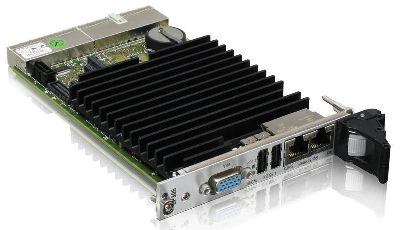

CompactPCI Board (3U) leverages 1.6 GHz Intel® Atom® CPU.

Press Release Summary:

Designed for operation in temperatures from 0 to +60°C for convection-cooled environments, CP305 features EN50155-compliant reliability and low TDP (Thermal Design Power), soldered processor, and RAM. It consumes 10 W of power (typ) and leverages Intel 945GSE plus ICH7M chipset and up to 2 Gb soldered DDR2 memory. Used to power energy-critical and in-vehicle mobile embedded applications, processor board integrates various interfaces and is offered in single- or dual-slot versions.

Original Press Release:

Kontron Brings Intel Atom Record Breaking Performance Per Watt into CompactPCI Systems

EN50155 compliant reliability, soldered components and ultra low TDP for harsh environments

Eching, Germany, September 15, 2009 - Kontron is bringing record-breaking performance per watt to 3U CompactPCI systems with the launch of the longtime available processor board Kontron CP305 with Intel Atom processor. The rugged Kontron CP305 features EN50155 compliant reliability and extremely low TDP (Thermal Design Power), soldered processor, chipset and RAM for harsh environments.

Equipped with the 1.6 GHz Intel Atom processor N270, Intel 945GSE plus ICH7M chipset and up to 2 GByte of soldered DDR2 memory the Kontron CP305 has a typical power consumption of only 10 Watt. This is less than half compared to earlier generations with identical performance. Designed for reliable operation in a temperature range from 0 to 60°C for convection cooled environments, the new CompactPCI board powers energy critical and in-vehicle mobile embedded applications in the transportation, automation, energy, military and aerospace markets. A version for the extended temperature range is also planned.

Despite its rugged low-power design, Kontron's latest CompactPCI CPU-board offers a comprehensive set of interfaces: On board the Kontron CP305 are 2 x Gbit Ethernet, up to 6 x USB 2.0, two SATA interfaces, and a CompactFlash socket. The graphics accelerator, integrated into the Mobile Intel 945GSE Express chipset, provides excellent 2D, 3D, and video features for the VGA connector on the front. The 3U CompactPCI CPU board is available as single slot (4HP) or dual slot (8HP). Engineers profit from the 8HP version by additional features including COM, PS/2, DVI on the front for dual monitor operation and a 2.5" SATA hard disk interface to mount a HDD or SSD required for harsher environments.

The Kontron CP305 features integrated board support packages for Linux, Microsoft Windows XP, XP embedded and VxWorks. Samples of the Kontron CP305 3U CompactPCI processor board are available now. Full production is scheduled for end of 2009.

More on the Kontron CP305 CompactPCI CPU board:

More about 3U CompactPCI:

More about CompactPCI:

About Kontron
Kontron designs and manufactures embedded and communications standards-based, rugged COTS and custom solutions for OEMs, systems integrators, and application providers in a variety of markets. Kontron engineering and manufacturing facilities, located throughout Europe, North America, and Asia-Pacific, work together with streamlined global sales and support services to help customers reduce their time-to-market and gain a competitive advantage. Kontron's diverse product portfolio includes: boards & mezzanines, Computer-on-Modules, HMIs & displays, systems & platforms, and rugged & custom capabilities. Kontron is a Premier member of the Intel® Embedded and Communications Alliance and has been a VDC Platinum Vendor for Embedded Computer Boards 5 years running. Kontron is listed on the German TecDAX stock exchange under the symbol "KBC". For more information, please visit:
