Clock Oscillator supports 2 output frequencies.
Share:
Press Release Summary:
Measuring 5.0 x 3.2 x 1.2 mm, surface mount Model CWSMF243 offers frequency choices between limits of 1.0-60.0 MHz, such as T-1/E1, 1.544 MHz and 2.048 MHz and T-3/E3, 34.368 MHz and 44.736 MHz. RoHS-compliant device features frequency stability of ±100 ppm at operating voltage of 3.3 V at 30 Ma within temperature range of -10 to +70°C. Peak jitter is 70 pc.
Original Press Release:

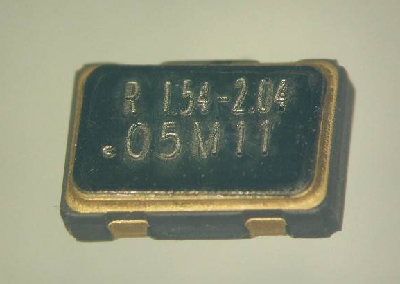

Unique New Dual Output Clock Oscillator
Two Output Frequencies in a Single Package Saves Board Space
Working in collaboration with manufacturers of telecom equipment, Rubyquartz, LLC., of Aventura, FL, has developed a smaller surface mount clock oscillator which provides the design engineer with a choice of two frequency outputs from a single package. The saving in board space is obvious as it negates the need for two units to achieve the same function.
In a package measuring a mere 5.0 x 3.2 x 1.2 mm, this new Rubyquartz Model CWSMF243 offers frequency choices between the limits of 1.0 - 60.0 MHz.
Typical examples are:
T-1/E1, 1.544MHz and 2.048 MHz
T-3/E3, 34.368MHz and 44.736 MHz
Frequency stability is at ±100ppm at an operating voltage of 3.3V @30Ma within a temperature range of -10 to +70°C. Peak Jitter is at 70pc. The series is RoHS compliant
The new Rubyquartz Dual Frequency Clock Oscillators are being quoted at a two to three week basis for sample requests with pricing for production quantities currently $1.25 ea. in lots of 10,000 pieces on a 6 - 8 week delivery ARO. For complete specifications, sample requests and for the latest price and availability information, contact:
RUBYQUARTZ TECHNOLOGY LLC.,
18205 Biscayne Blvd, STE #2217,
Aventura, FL 33160
Tel: +1-305-406-0211 Fax: +1-305-647-2169
Toll-free: +1-855-OSCILLATOR
E-mail: sales@rubyquartz.com
