Clamping Knobs include indexing plunger.

Press Release Summary:




Offered in range of metric sizes, Series GN 7336.7 is used for positioning, securing, and clamping adjusting elements simultaneously. Axial movement of handle pulls indexing plunger from engaged position against spring force, while knob remains connected with form-lock to clamping screw via hexagonal element. For safety, design of Series GN 7336.8 ensures that indexing plunger cannot be pulled from indexing bore by turning knurled knob, but only by deliberately pulling handle.



Original Press Release:



J.W. Winco, Inc. Knobs Will Position, Secure and Clamp

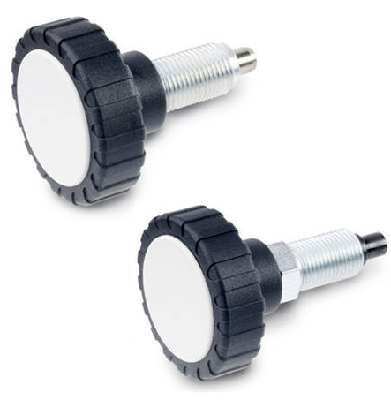

NEW BERLIN, WI - J.W. Winco, Inc., a leading supplier of standard industrial machine components, announced it now offers series GN 7336.7 Clamping Knobs with Indexing Plunger as well as GN 7366.8, a version with safety function.

These RoHS-compliant knobs are used for positioning, securing and clamping adjusting elements simultaneously. The axial movement of the handle (pulling) pulls the indexing plunger from the engaged position against the spring force, with the knob meanwhile remaining connected with form-lock to the clamping screw via a hexagonal element. This design permits both clamping and releasing. The design of the GN 7336.8 ensures that the indexing plunger cannot be pulled from the indexing bore by turning the knurled knob, but only by deliberately pulling the handle (safety function).

The body of the knurled knob is glass fiber reinforced plastic with a black matte finish. The threaded body is zinc plated, blue passivated steel. The cover cap is glass fiber reinforced plastic with a light gray matte finish. The plunger pin is nitrided and blackened steel. These clamping knobs are offered in a range of metric sizes.

J.W. Winco offers an extensive selection of inch and metric size adjustable levers, cabinet U-handles, plastic and steel hinges and locking mechanisms, revolving and retractable handles, hand wheels, hand cranks, tube connection and conveyor components, inch and metric construction tubing, shock absorption mounts, leveling mounts, hand knobs, spring, ball and indexing plungers, jig, fixture and fastening components, retaining magnet assemblies, toggle clamps, metric casters and wheels, universal joints, oil sight glasses, and metric tools for the industrial and commercial equipment industries. J.W. Winco's website catalog, with 3D CAD and online buying, is viewable at www.jwwinco.com. For more information, contact J.W. Winco at 800-877-8351, by fax at 800-472-0670, on the Web at www.jwwinco.com, and via e-mail at sales@jwwinco.com.
