Clamp-on Process Meter measures 0-120 mA DC.

Press Release Summary:




Featuring 6 mm clamp diameter, Model CL420 will safely measure 0-120 mA DC process control signals without breaking loop. Unit provides 0.2% accuracy and 0.01 mA resolution from 0-20 mA DC. Equipped with dual LCD numeric display, LED torch light, and data hold function, meter is suitable for distributed control systems, PLCs, pressure and temperature transmitters, and loop-powered isolators and indicators.



Original Press Release:

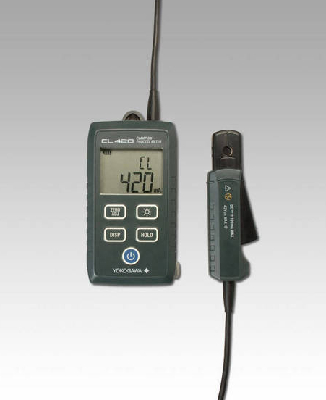

Yokogawa Releases New DC mA Clamp-on Process Meter



Yokogawa Corporation of America is pleased to announce the release of another high quality and well-engineered product, the CL420 Clamp-on Process Meter. The CL420 will safely measure 0-120 mA DC process control signals without breaking the loop. Typical application examples include distributed control systems, programmable logic controllers, pressure and temperature transmitters, and loop powered isolators and indicators.

Outstanding features of the Yokogawa CL420 include:

· 0.2% Accuracy and 0.01 mA Resolution from 0-20 mA DC

· mA Measurement and % of Span for 4-20 mA

· Dual LCD Numeric Display.

· LED Torch Light

· Data Hold Function

· 6mm Clamp Diameter

· Analog Output Available

The Yokogawa CL420 is complementary to our existing portfolio of calibrators, such as the CA11 Loop Calibrator, CA71 and CA150 Multifunction Calibrators, and the CA450 Process Meter. The analog output can be used as an input to the XL120 data logger, TY500/700 Multimeters, or chart recorders.

Standard accessories provided with the CL420 are a carrying case, 4 AA batteries, and an instruction manual. Optional accessories include analog output cables with banana plugs or screw terminals. The CL420 has a 1 year warranty.

The Yokogawa CL420 Clamp-on Process Meter is available through Yokogawa distributors and representatives at a suggested list price of $625. For more information on the Yokogawa CL420 and additional Yokogawa Meter and Instruments products, visit www.tmi.yokogawa.com or contact us via email at meters-instr@us.yokogawa.com.

About Yokogawa Corporation of America

Yokogawa Corporation of America is the North American division of Yokogawa Electric Corporation and a key part of Yokogawa's global network of 25 manufacturing facilities and 80 companies spanning 55 countries. Since its founding in 1915, the US$4 billion company has been engaged in cutting-edge research and innovation, securing more than 7,200 patents and registrations, including the world's first digital sensors for flow and pressure measurement. Industrial automation and control, test and measurement, information systems and industry support are the core businesses of Yokogawa. For more information about Yokogawa, please visit our website www.yokogawa.com/us.

About Yokogawa

Yokogawa's global network of 90 companies spans over a total of 55 countries. Founded in 1915, the US$4 billion corporation conducts cutting-edge research and innovation. Yokogawa is engaged in industrial automation and control (IA), test and measurement, and other business segments. The IA segment plays a vital role in a wide range of industries including oil, chemicals, natural gas, power, iron and steel, pulp and paper, pharmaceuticals, and food. For more information about Yokogawa, please visit our website www.yokogawa.com.
