Floor, Lift Truck and Conveyor Scales
Checkweighers weigh small packets contained in carrier.
Press Release Summary:
Stainless steel Sonic 350-LW Lift-N-Weigh Systems are suited for stop motion weighing of packaged products weighing from 10-200 g with accuracies to ±0.5 g. Production rates up to 400 units/min are achievable, depending on configuration. With weighing mechanism mounted above conveyor, checkweigher lifts packets, weighs and releases them back onto carrier, then generates true weight before they continue down conveyor. Process ensures each packet is filled to proper weights.
Original Press Release:
Thompson Scale Designs New Innovative Lift and Weigh Checkweighers
Checkweighing Concept Provides New Weighing Options for Packaging Plants
(January 10, 2005) WestPack, Anaheim, CA - Thompson Scale Company, a leader in checkweighing systems, packaging machinery controls, and custom production scales, announced today the release of its Sonic 350-LW Lift-N-Weigh Checkweighers. These advanced checkweighers provide additional weighing options for companies that package cups filled with various condiments or blister packs that cannot be weighed with a standard checkweigher.
The Sonic 350-LW Checkweigher is designed for stop motion weighing of packaged products weighing from 10 grams to 200 grams with accuracies of up to +/- 0.5 gram. This checkweigher is capable of weighing various items such as thermoformed sauce cups, blister packs, or any other small-surfaced package. Production rates up to 400 units per minute are achievable, depending on the configuration.

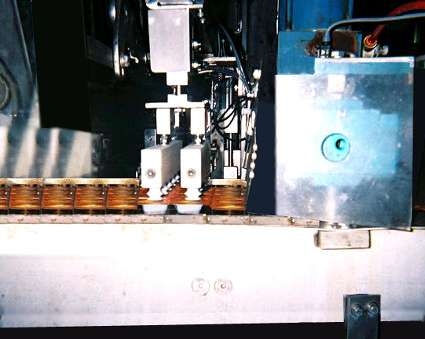

The unique design of the Lift-N-Weigh Checkweigher allows it to weigh small packets contained in a carrier that could otherwise not be weighed. The weighing mechanism is mounted above the conveyor so it can pick up the product up off of the carrier. The checkweigher quickly lifts the packets, weighs and releases them back onto their carrier, then generates a true weight before they continue down the conveyor. The process ensures that each packet is being filled, and filled to the proper weights. This solution provides companies unable to checkweigh with the opportunity to improve their quality assurance.
This checkweighing system uses a unique suction powered lifter and load cell element that checkweighs a row of two or more than five packets at a time. The precision scale is capable of weighing about 60 rows of five packets a minute or two rows of five in each carrier for 120 total carrier packets weighed per minute.
The Sonic 350-LW features quick and simple operation with easy changeover from product to product. Its stainless steel construction is tough enough to handle almost any product in any environment, yet is responsive in both accuracy and performance. Unlike other systems on the market, the Sonic 350-LW utilizes a single static calibration to provide accurate and repeatable weights over the range of the scale.
The controllers for these highly advanced checkweighers can hold 75 unique product setups in memory and display useful information on production as each unit is weighed. The checkweigher controller offers both English and Spanish menus in full sentences for better comprehension by shop floor operators.
These versatile checkweighing systems are constructed of all stainless steel components and are available in various configurations to meet specific requirements: food grade (compliant applications), washdown and corrosive applications, as well as hazardous environments up to Class I, Division 1. They also offer a wide variety of reject options such as optional conveyors, light displays, alarms, reporting packages, and communication interfaces.
The Sonic 350-LW Checkweigher is available now. For more information, call 713/932-9071 or visit the Thompson Scale website at www.thompsonscale.com.
Thompson Scale Company
Thompson Scale Company is a leading manufacturer of weighing systems and packaging machinery controls. Thompson Scale has provided the manufacturing industry with highly accurate and reliable weighing solutions for over 30 years. Products include in-motion checkweighers, universal filler controllers, remote digital displays, inline rejector conveyors, and filling machinery upgrades. The company offers quality equipment with training and service in support of all products. Thompson Scale systems are made in the USA and sold to manufacturing facilities around the world.
Thompson Scale, Sonic 350-LW, TSC 350, 4693 Heavy-Duty Checkweigher, 4693i Intermediate Checkweigher, 4693 Filler Controller, RZDP Light Tower, RL16s Slimline, RL26, RL36, Inline Rejector Conveyor, and Model 2657 Filler Retrofit are trademarks of Thompson Scale Company. All other trademarks mentioned herein are the sole property of their respective owners.
For technical information:
Alan Vaught
Thompson Scale Company
Phone: 713/932-9071
alan.vaught@thompsonscale.com
