Channel Grinder features 2 systems built into one frame.

Press Release Summary:




Designed to handle flow rates up to 64 million gal/day, DIMMINUTOR DX includes 2 complete systems, each with drive, rotor, and screens. As 3 bi-directional rotary cutters intermesh at close clearance with stationary cutters, solids are finely reduced to size small enough to pass through sizing screen. With no gaps or openings between screen and cutters, output is controlled and complete reduction assured. Cantilevered design eliminates seals or bearings near channel floor.



Original Press Release:

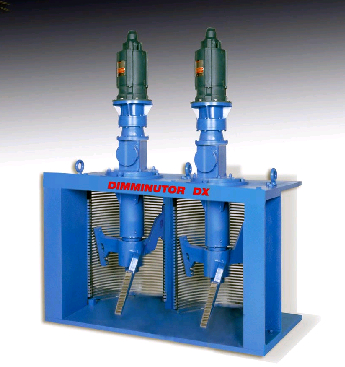

Introducing The Dimminutor DX Channel Grinder



New Model Features Twice the Cutting Width

The new DIMMINUTOR DX (DUPLEX) has two complete systems built into one frame for twice the flow capacity as prior Dimminutor models. This powerful unit features two complete systems including: drive,rotor and screens. It can fill out today's wider channels and handle flow rates up to 64 (mgd) million gallons per day (10100 m3/hr).

The DIMMINUTOR DX employs a smooth, continuously rotating design with high torque. As its three bidirectional rotary cutters intermesh at close clearance with stationary cutters, solids are finely reduced to a size small enough to pass through a sizing screen. With no gaps or openings between the screen and cutters, output is controlled and complete reduction assured.

Every component of the DIMMINUTOR DX is solidly constructed for precision and long life. A unique, cantilevered design eliminates seals or bearings near the gritty channel floor. This adds to system life and simplifies maintenance. The cutters are bi-directional for extended cutter life and can be individually removed or replaced without removing any other part. The unit's screens are precision cut from heavy stainless steel plate and designed so that the cutters penetrate the slots for dependable clearing of debris. The DIMMINUTOR DX is built with a high percentage of open area so headloss through the unit is very low.

For more information contact Franklin Miller Inc. 60 Okner Pkwy. Livingston, NJ 07039 973-535-9200 fax 973-535-6269 www.franklinmiller.com
