Centrifugal Impeller suits limited-space applications.

Press Release Summary:




Offering vibration-free operation, DX Motorized Centrifugal Impeller combines backward curved airfoil wheel with DC external rotor motor. Unit comes in 24 and 48 Vdc models with capacities to 760 cfm and 0-10 Vdc or PWM motor control. Both motor and impeller are located directly in air stream, where impeller acts as rotating heat sink. Completely speed controllable, impeller is suitable for supply or exhaust applications, as well as applications where transient electrical noise is prohibited.



Original Press Release:

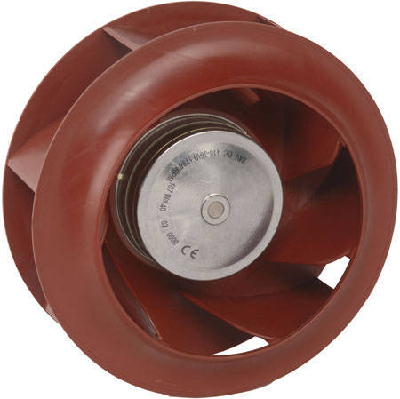

DX Motorized BC Impellers (DC)



Continental Fan's DX Motorized Centrifugal Impeller is a superbly crafted, precision balanced air-moving device that features superior performance and compact design. It is ideally suited to applications where space is limited. The unique coupling of the motor and impeller minimizes space requirements and provides for vibration free operation. By combining the efficiency of a backward curved airfoil wheel with the advanced technology of a DC external rotor motor, new standards for air performance and sound levels have been achieved.

Suitable for either supply or exhaust applications, the DX Impeller is an excellent choice for those applications where transient electrical noise is prohibited. The DX Impeller is fully and completely speed controllable. Both motor and impeller are located directly in the air stream, where the impeller acts as a rotating "heat sink" with excellent heat dissipation and efficient motor cooling.

Continental Fan provides unique fan designs that are quiet, efficient and performance driven.

FEATURES & BENEFITS

o 100% speed controllable DC external rotor motor

o Available from stock in 24 & 48 VDC

o 0-10VDC or PWM motor control

o IP44 motor and reverse polarity protection

o Matching inlet cones available

o Tachometer output

o Capacities to 760 cfm

The DX Motorized Impeller, another Air Moving Solution from:

Continental Fan

......... better AIRFLOW by DESIGN(TM)

For more information contact:

Bruce Gover or visit us on the web to view our full line of axial & centrifugal motorized impellers.
