Cartridge Type Milling Cutter machines non-ferrous materials.

Press Release Summary:




Available in 80-200 mm diameters with max cutting speeds from 5,000-7,000 m/min, Valenite F4050 utilizes high-tensile steel cartridges with brazed PCD carbide tips. Adjusting key guarantees micron-precise runout of cartridges, while carbide chip deflector handles heavy chip production from roughing and finishing operations. Cartridges are available with 90° clearance angle and cutting depths up to 4 mm, or 75° clearance angle and cutting depths up to 1.1 mm.



Original Press Release:



Walter USA, LLC Introduces New Cartridge Type Milling Cutter



Walter USA, LLC introduces new cartridge type milling cutter for high-speed, high volume machining of non-ferrous material.

An array of enhanced features boosts the performance of this new cutting tool.

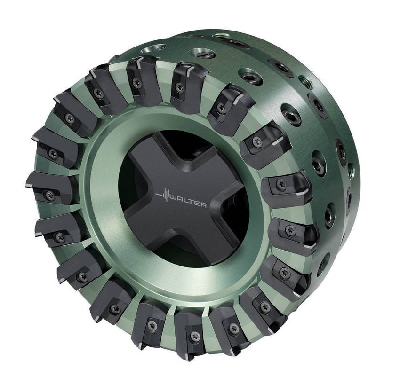

Waukesha, WI. - Walter USA, LLC has introduced the Walter Valenite F4050 cartridge type cutter, an innovative new approach to the challenges of high-speed milling of non-ferrous materials. Features of the F4050 include the use of high-tensile steel cartridges with brazed PCD carbide tips. An adjusting key guarantees a micron-precise runout of the cartridges. Toolsetting is done through clamping screws which are tightened according to defined torques, enabling high limiting speeds. Fine balancing screws also ensure a high balance class. Importantly, the F4050 is designed and built to allow all adjustments to be done quickly and easily and thus help boost the tool's productivity.

F4050 is available in diameters ranging from 80 to 200 mm. A carbide chip deflector supports the significant level of chip production in both roughing and finishing operations. The tool is equally productive at maximum cutting speeds in the range from 5000 to 7000 m/min.

Cartridges with a 90 degree clearance angle and cutting depths of up to 4 mm, or cartridges with a 75 degree clearance angle and cutting depths of up to 1.1 mm are currently available. These enable both shoulder mill and face mill operations. In addition, Walter also provides a broad finishing cartridge for applications where a very high quality surface finish is critical.

Applications for the new milling cutter include high volume machining of non-ferrous metals such as hypereutectic and hypoeutectic aluminum alloys in the automotive and general machining sectors. Typical components would be engine blocks, cylinder heads and die-cast aluminum gearbox housings. Depending on the applications, special PCD varieties and tool diameters are also available.

Walter USA, LLC offers an extensive line up of cutting tools for milling, drilling, turning, boring and specialized tooling for unique applications through its competence brands Walter Valenite, Walter Titex and Walter Prototyp. As well as multi-level service programs through its Walter Multiply brand. Headquartered in Waukesha, Wisconsin the company has a strong network of distributors and field engineers across North America. The Walter name is synonymous with productivity, thanks to more than 80 years of developing cutting tools and inserts that set new standards in production. Walter USA, LLC combines over 75 years of U.S.-based tooling production with long-standing traditions of quality and innovation.
