Press Release Summary:
Housed in 2 x 2 x 0.4 in. package with integrated electronics, Series M870 comes in 10, 50, and 250 lb capacities. By supplying 5 Vdc input to sensors, users can read 0-5 Vdc output with voltmeter or feed it into data acquisition or control systems. Sensors offer 2,000-4,000 mV of output change from baseline to full load with noise of Â±2 mV, enabling 0.1% sensitivity and 1% accuracy. Units draw 0.01 ÂµW, making them suited for portable battery-powered applications.
Original Press Release:

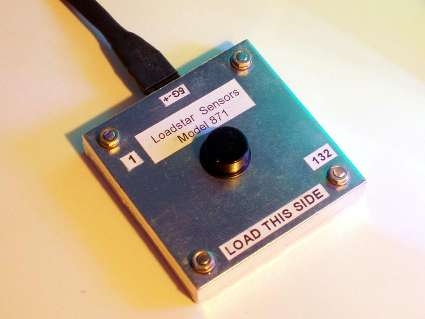

Loadstar Sensors, Inc. Introduces Capacitive Load Sensors
Low Cost, Easy to Use, Real Time Load Measurements up to 250lbs
Loadstar Sensors Inc. of Sunnyvale, California introduces the M870 family of integrated capacitive low profile, load sensors to measure loads (weights) easily and at more than half the cost of currently available solutions. Users need only supply a 5V DC input to the sensor and can read a 0 to 5 V DC output with a voltmeter or feed it into commonly used data acquisition or control systems.
Based on patented capacitive force sensing technology, the M870 series of load sensors offer high sensitivities in a mechanically robust package (2in. X 2 in. X 0.4 in max) and come in 10 lb, 50 lb and 250 lb capacities. These sensors can be further customized for ranges lower than 10 lb or higher than 250 lb upon request from customers.
Conventional load cells are based on resistive strain gauge technology whose typical full scale output is only 20-30 mV. This necessitates using good signal conditioning equipment to resolve microvolt range changes and drives up the cost. In comparison, the M870 series of capacitive sensors offer between 2000 and 4000 mV of output change from baseline to full load with a noise of only +/- 2mV, enabling 0.1% sensitivity and 1% accuracy (including hysteresis, temperature effects and non-linearity). The high output signal strength in a small package without need for any external electronics at an attractive price makes it feasible to include load sensors in a wide range of applications. Sensors with even tighter specifications are available upon request.
"The new sensor technology combines the best of three disciplines: mechanical durability; sensitivity; and integrated electronics. We eliminate the need for external signal conditioning equipment and greatly simplify the process of measuring loads at a fraction of the cost of other load cells." says Bill Dallenbach, Founder of Loadstar Sensors, Inc.
Some of the key features of M870 Capacitive Sensors are:
o Standard sensors available in 10 lb, 50 lb and 250 lb capacities
o Input 5V; Output: Variable DC in 0 to 5V range with at least 2000 mV change for full scale loading
o Integrated sensor with electronics - no need for signal conditioning box
o Draws only 0.01 microWatts, enabling portable battery-powered applications
o Rugged design; contains no delicate bonded foils or calibrated levers and withstand 200% overloads
About Loadstar Sensors, Inc.
Established in 2004, Loadstar Sensors, Inc. located in Sunnyvale, California is a leader in the design and manufacture of capacitive sensors for automotive, aerospace, medical device and industrial applications.
For more information please visit www.loadstarsensors.com
CONTACT: Div Harish of Loadstar Sensors, Inc.
