Burr/Cutting-Tool Grinder provides turnkey solution.

Press Release Summary:




Running on Windows XP OS, 8-axis Model 8200 includes automated pick-n-place loader and Geometral(TM) tool-grinding software that allows operator to customize and modify tool geometry. Operator can immediately view designed tools in 3 dimensions on color, flat-panel monitor. Production grinding system includes Yaskawa ac servomotors and drive amplifiers, built-in networking capability, and ability to grind multiple part lengths and sizes in one pallet set-up.



Original Press Release:

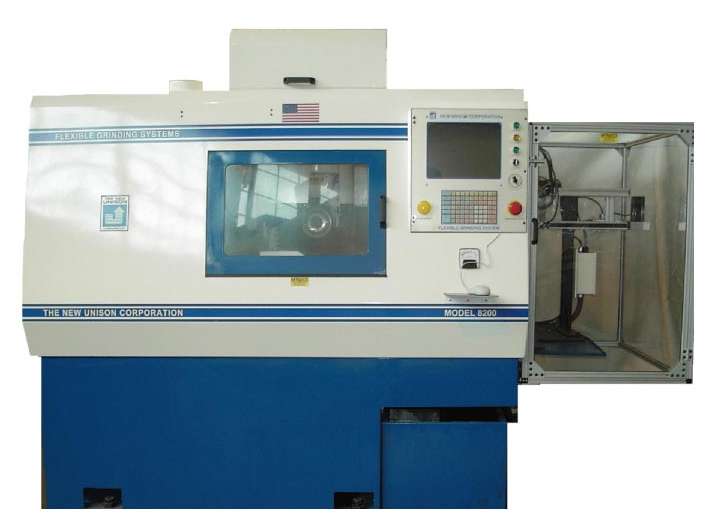

The New Unison Corporation has Introduced a new Model 8200 Combination Burr/Cutting Tool Grinder



Ferndale, Michigan June 10, 2004 - We are pleased to announce The New Unison Corporation has introduced a new Model 8200 Combination Burr/Cutting Tool Grinder. The Model 8200 is an 8 axis "turnkey" production grinding system with a fully automated pick-n-place loader. The Model 8200 is equipped with our new Version 6 tool grinding software and runs on the Windows XP operating system. Our proprietary "Geometral" (TM) software allows the operator to quickly customize and modify tool geometry. The operator can immediately view designed tools in three dimensions (3D) on the machine's high-resolution, color flat panel monitor.

This New Unison Model 8200 Combination Burr/Cutting Tool Grinder features:

o Yaskawa AC Servo Motors & Drive Amplifiers
o Built-in Networking Capability
o 3D Graphics Package with Full View of Part
o Color Flat Panel Operator's Monitor
o Easy to Maintain Pick-n-Place Autoloader
o Multiple Part Lengths and Sizes can be Ground in one Pallet Set-up
o Automatic Wheel Compensation Feature
o Superior Diagnostic System
o User-friendly Graphical Interface Direct to Machine
o Capacity to Store up to 10,000 Part Programs/Wheel Packs
o Standard Industrial Burr Shapes
o Surgical Burr Shapes for Medical Tools
o Non-Ferrous Cut (Aluma Cut) Burr Shapes
o Cylindrical Burrs with End Mill/Fishtail/Drill End and Diamond Cut
o Staggered Flute Capability for Industrial Burrs
o Easy to Use Software Package for Designing Custom Burr Shapes
o Production Monitoring/Parts Counting Feature

New Unison's headquarters are located in Ferndale, Michigan and we are staffed to handle all of your sales, service and/or spare parts needs. Additionally, we offer both mechanical and computer upgrades for all Unison equipment. New Unison's Service Department consists of the same highly skilled technicians who originally built your machinery and is the only factory authorized party who can service Unison equipment. New Unison also markets its equipment in domestic sales locations in Pennsylvania, California, Illinois, Tennessee and Texas. International sales and support are provided in Australia, England, Italy, Israel, Thailand, China, India, Korea, Singapore, Taiwan and Japan.

The New Unison Corporation markets its products on a worldwide basis under the TruFlute and DedTru tradenames with over 10,000 equipment installations serving the automotive, off-highway, plastics, aerospace, medical/dental and petrochemical industries. Our equipment is used by some of the largest corporations in the world; Bausch & Lomb, Becton Dickinson, Boeing, Bosch, John Deere, Eveready Battery, Ford Motor, Rolls Royce, St. Gobain and Textron just to name a few. Our product line features the Model 688 CNC Fluter, the Model 1100 CNC Camless Profile Grinder, the Model 2100 CNC DedTru Centerless Grinding System, the Model 2200 CNC ID Grinder, the Model 2300 CNC TruCut End Gasher, the Model 2400 CNC Roughing Cutter Grinder, the Model 2500 CNC Punch Grinder, the Model 2600 CNC 5-Axis Tool Grinder, the Model 2700 CNC 5-Axis Re-Grind/Remanufacture Grinder, the Model 4000 CNC Super TruFlute with Hydrostatic Ways and the recently announced Model 9000 Super TruFlute Production Tool Grinder. New Unison also offers our Models U-12 and U-20 general purpose centerless grinders.

For additional information regarding New Unison products, please contact us. We encourage you to visit our expanded website at www.newunison.com. New Unison will feature its products in Booth #B-7345 at IMTS 2004.

DESIGNERS AND BUILDERS OF PRECISION GRINDING EQUIPMENT

1601 Wanda Avenue, Ferndale, Michigan 48220
Phone: 248-544-9500 Fax: 248-544-7646 E-mail: sales@newunison.com
