Boundary Scan Controller is designed for cabled PCI Express.

Press Release Summary:

Compliant with PCI Express External Cabling 1.0, SCANBOOSTER/PEC controller supports JTAG/boundary scan tests, VarioTAP® emulation tests, in-system programming for PLD/FPGA, and in-system programming for Flash serial EEPROM devices. System features 2 separate test access ports, with test bus parameters programmed independently for each. It provides 32 voltage-level-programmable, dynamic parallel I/O; 2 ADC/DAC channels; and 3 static I/O. Programmable TCK frequencies up to 16 MHz are allowed.

Original Press Release:

New Low-Cost Boundary Scan Controller for Cabled PCI Express

At the 2009 International Test Conference (ITC) GOEPEL electronic, a world-class vendor of JTAG/Boundary Scan solutions compliant with IEEE Std. 1149.x, introduces the SCANBOOSTER/PEC, a new high-performance, low cost Boundary Scan controller, as an addition to the company's extensive product line.

As a new member of the SCANBOOSTER(TM) product line, this Boundary Scan controller is compliant with the PCI Express External Cabling 1.0 Specification and supports JTAG/Boundary Scan tests, VarioTAP® emulation tests, In-System Programming (ISP) for PLD and FPGA, as well as In-System Programming for Flash serial EEPROM devices of moderate size.

"Combining the Cabled PCI Express bus performance with the flexibility of our SCANBOOSTER(TM) architecture, we are able to provide a capable solution also for cost-sensitive applications", says Heiko Ehrenberg, General Manager of GOEPEL electronics LLC USA. "This extension of our SCANBOOSTER(TM) product family is another important step in our strategy to open up new applications in the low-cost test arena."

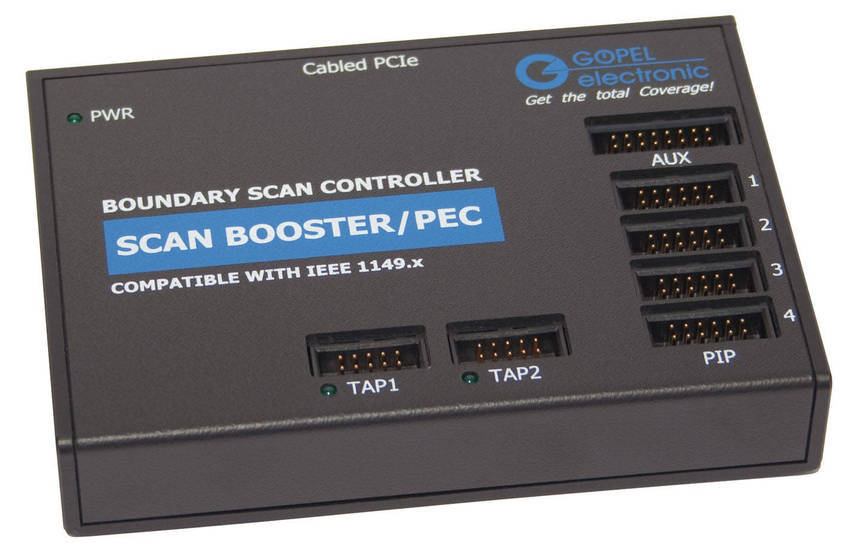

The SCANBOOSTER/PEC features two separate Test Access Ports (TAPs) and supports a programmable TCK frequency up to 16MHz. Exchangeable TAP Interface Cards (TIC) make the controller flexible and future-proofed. Test bus parameters such as output and input voltage as well as output and input impedance can be programmed independently for both TAPs.

As additional resources, the controller provides 32 voltage-level-programmable, dynamic Parallel I/O, two ADC/DAC channels, external trigger signals, and three static I/O. Thus, the SCANBOOSTER/PEC is ready to be deployed for extended test and PLD/Flash programming operations.

Test and ISP applications developed for the ScanBooster/PEC are cross-compatible with any controller of the ScanBooster(TM) series or the SCANFLEX® Boundary Scan platform.

Optionally, GOEPEL electronic offers a plug-in card as bridge for PCI Express to Cabled PCI Express. The distance between PC and SCANBOOSTER/PEC can be up to seven meters (21 ft).

SCANBOOSTER/PEC is fully supported by the industry leading Boundary Scan software SYSTEM CASCON(TM). SYSTEM CASCON(TM) is the only completely integrated development environment with a powerful Mixed-Signal programming language (CASLAN) for IEEE Std.1149.x, featuring more than 40 tools for Automatic Test Program Generation (ATPG), pin-fault diagnostics, VarioTAP® emulation test, in-system programming (ISP), debugging, schematic and layout visualisation, and more.
