Board Connectors withstand strong vibration exposure.

Press Release Summary:

Based on 1.27 mm pitch, MatchCon MBP/MBS Series offers wide range of 90° and 180° board connectors in SMT versions and with TH pins. Positioning springs enable male and female contacts to interlock strongly, so that typical fretting of tin-plated contacts can be eliminated through high contact force. Available with pin counts from 6-26, connectors use IDC technology to secure cable.

Original Press Release:

MatchCon: Highest Possible Contact Reliance in Every Application

Munich, July 2009 - Yamaichi Electronics introduces its new connector series MatchCon for a wide range of applications.

Yamaichi Electronics enlarges its portfolio of board-to-board and board-to-cable connecters with two new connector types, MatchCon and BoardFit. The MatchCon connectors are described here.

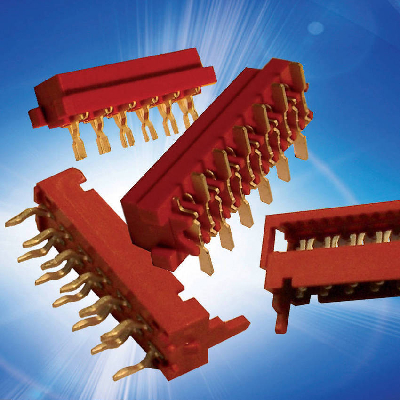

The new MatchCon connectors (MBP/MBS series) are characterized by a special contact design which is particularly qualified for applications with strong vibration exposure, e.g. in the automotive area. Due to positioning springs the male and female contacts interlock strongly so that the typical fretting of tin-plated contacts can be eliminated through the high contact force.

MatchCon is based on a 1.27mm pitch, offers a wide range of 90° and 180° board connectors not only in SMT but also with TH pins. The connection to the cable is secured by IDC technology. Another locking feature allows an additional locking between the board and cable connector. Currently the different versions are available with pin counts from 6 to 26.

Additionally to this connector series Yamaichi Electronics offers a wide range of board-to-board and board-to-cable solutions with different pitches and design versions, e.g. the new BoardFit connectors (P3/P4 series).

More technical data, electrical specifications and further products can be found under or directly in the data sheets
or in the catalogue "Connectors & Sockets 2009" which can be ordered on the mentioned website.

For any product queries please write to:

About Yamaichi Electronics

Yamaichi is a market leader for test & burn-in sockets, connectors and connection systems - areas in which reliability and function safety are essential for the success of the whole project. Yamaichi has established itself very quickly on the world market as a manufacturer of high-quality and reliable components for ambitious applications in the following sectors: telecommunications infrastructure, industrial automation, mobile computer technology, mobile telephones, GPS systems, printers, digital cameras, camcorders, as well as electronic devices in the retail trade, industry and electronics.

Yamaichi Electronics Deutschland GmbH

Karl-Schmid-Str. 9, 81829 Munchen, Germany

Tel. +49 (0)89 - 4 51 09-0

Fax: +49 (0)89 - 4 51 09-110
