Bipolar High Voltage Data Logger measures up to ±850 Vdc.
Press Release Summary:
Featuring battery-powered design that operates up to 45 days on two AA cells, Simple Logger® II L481 can be programmed to sample from 8 times/sec to once/day and can store up to 240,000 measurements in internal non-volatile memory. LED display indicates logging status and memory usage. For set-up and download of data, logger has USB 2.0 interface for connection to Windows PC. Included software lets user configure logger, view real-time data, download and plot stored data, and generate reports.
Original Press Release:

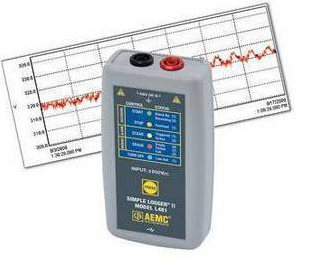

AEMC L481 Bipolar DC High Voltage Data Logger
o Measures up to ±850 VDC
o Storage rate of 8x per second to once/day
o Store up to 240,000 measurements
o USB 2.0 communication interface
o Simple LED status display
o Battery powered
Applications
Description
The Simple Logger® II model L481 DC Voltage Data Logger provides an extended voltage measurement range of ±850 VDC with a resolution of 0.1V making is suitable for applications such as monitoring rail voltages, machines, windmills, power supplies and battery packs and for finding intermittent voltage problems.
The L481 can be programmed to sample from 8 times per second to once a day. It can store up to 240,000 measurements in internal non-volatile memory and offers 3 recording modes including Extended Recording Mode (XRM®) for long term data collection. The L481 is battery powered and can operate up to 45 days on 2x AA cells.
A simple LED display on the front of the logger provides an immediate indication of logging status and memory usage. Voltage inputs are via standard recessed banana jacks and a set of 5 foot cables with alligator clips are included with the logger.
For set-up and download of data, the L481 logger has a USB 2.0 interface for connection to a standard Windows PC. The free DataView® software included with the unit provides a very simple way to configure the logger, view real-time data, download and plot stored data and generate standard or custom reports. It also allows the measured data to be scaled to custom engineering units and can synchronize multiple loggers to record at the same time.
