Base-Ported Hydraulic Filter has up to 500 gpm flow capacity.
Press Release Summary:
Suited for mining, steel mills, and pulp and paper applications, Model QLF15 is equipped with fast acting stainless steel bypass valve. Offered in re-cleanable metal mesh, plastic coreless, or deep-pleated media for high dirt holding capacity, it has maximum operating pressure of 1,500 psi and temperature range of -20 to 225°F. Available in 16 and 39 in.sizes, hydraulic filter features L-ported design, porting base and cap of ductile iron, and element case of steel.
Original Press Release:

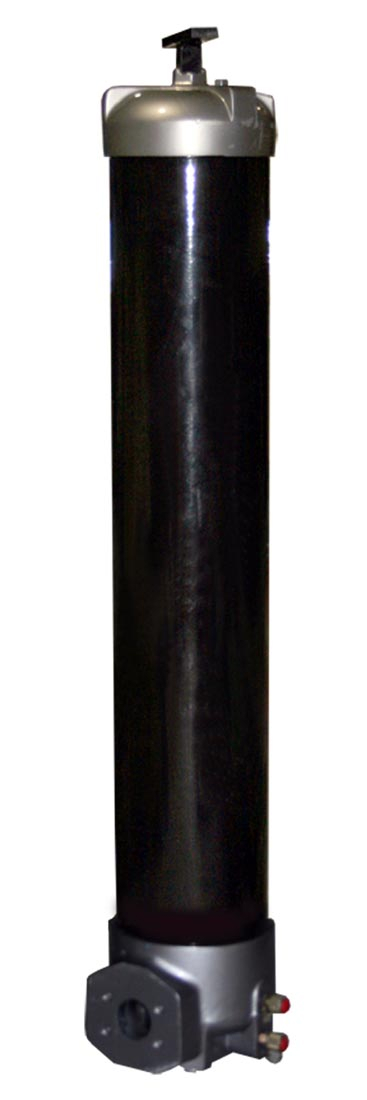

Schroeder Industries Introduces the QLF15 Base-Ported Filter
QLF15 offers highest flow capacity of any hydraulic filter in its line-up
Leetsdale, PA- Schroeder Industries, a recognized leader in filtration and fluid conditioning products, introduces its QLF15 Base-Ported Filter, offering the highest flow capacity of any hydraulic filter in its line-up. The QLF15 is ideal for mining, steel mills and pulp and paper applications.
The L-ported design of the QLF15 allows for installation flexibility. Capable of high flow rates up to 500 gpm (or 1900 L/min), the QLF15 is equipped with a fast acting stainless steel bypass valve. Available in re-cleanable metal mesh, plastic coreless or deep-pleated media for higher dirt holding capacity, the QLF15 has a maximum operating pressure of 1500 psi (100 bar), and a temperature range of -20 °F to 225 °F (-29 °C to 107 °C).
Available in both 16" and 39", is designed with a porting base and cap of ductile iron, and an element case of steel. The QLF15 is also available in a stainless steel version for water filtration. For more information on the QLF15, or other products available from Schroeder, please visit www.schroederindustries.com.
About Schroeder Industries
Schroeder Industries designs, manufactures and markets filtration products for the hydraulic, biofuel and processing industries. Schroeder is a leader in filtration and fluid conditioning. Their expertise in filtration technology, superior filter and element manufacturing capabilities, dedication to customer service, and product support are the reasons Schroeder is considered. The Filter Company.
For further information about Schroeder Industries and its products, call 724-318-1100 or visit www.schroederindustries.com.
