Bandpass Filter is suitable for digital applications.

Press Release Summary:



Model 14584 passes single channel signals while providing rejection to adjacent channels, and is used in CATV, LAN, MDU, MSO and network applications. It offers high adjacent channel selectivity while maintaining low differential group delay specification. Unit features return loss greater than 18 dB over full video or audio range. Bandwidths of 4, 5, or 6 MHz are available for any CATV channel 37 through 125. Filter comes with type F connectors.



Original Press Release:


Adjacent Channel CATV Bandpass Filter


East Syracuse, NY - Microwave Filter Company is pleased to introduce the model 14584 single channel bandpass filter. The unit is part of a cost effective, premium grade family of filters and networks offered by the company.

This unit passes single channel signals while providing rejection to adjacent channels and is used in CATV, LAN, MDU, MSO and network applications. This model offers high adjacent channel selectivity while maintaining a low differential group delay specification, making it ideal for digital applications. In addition, the unit has excellent return loss characteristics (greater than 18 dB) over the full video to audio range. Bandwidths of 4, 5 or 6 MHz are available for any CATV channel 37 through 125 (300 to 804 MHz).

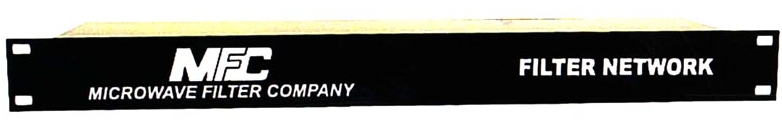

The 14584 comes standard with type F connectors but can be configured to any specific customer requirement, including rack mount (1 RU high), at no additional cost.
